Induction sealing is a widely used method for creating hermetic seals on containers, particularly in the pharmaceutical, food, and cosmetic industries. While induction seals are effective in preventing leaks and maintaining product freshness, they are often misunderstood as being inherently tamper-evident. However, under certain conditions, induction seals may not provide the expected level of tamper evidence. This article will explore why induction seals might not always be tamper-evident and discuss the factors that influence their effectiveness in this regard.
Induction sealing is a non-contact process that uses electromagnetic fields to heat and seal a foil laminate to the lip of containers. This process is recognized for its ability to create a hermetic seal, which is crucial for preventing contamination and maintaining product quality.

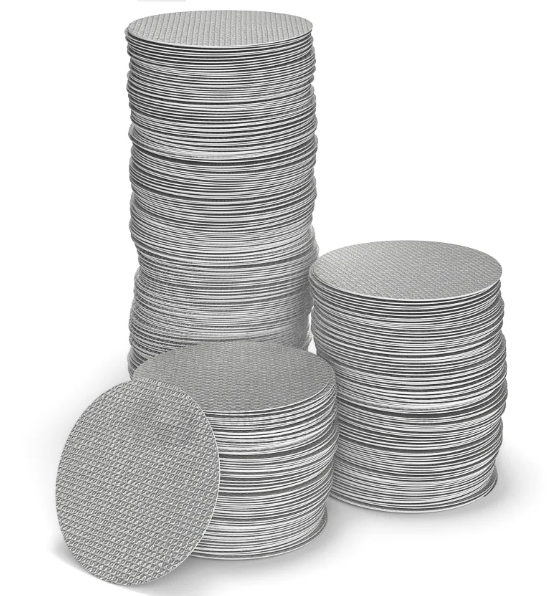

An induction seal typically consists of a multi-layered foil liner placed inside the cap of a container. The layers include:
1. Aluminum Foil: This is the conductive layer that reacts to the electromagnetic field.
2. Wax or Polymer Coating: This layer melts during the sealing process to bond the foil to the container.
3. Backing Material: Often cardboard or paper, which provides structural support to the liner.
The induction sealing process involves several key steps:
1. Container Preparation: The container is capped with a liner-equipped cap.
2. Induction Heating: The container passes under an induction coil, which generates an electromagnetic field. This field induces eddy currents in the aluminum foil, causing it to heat up.
3. Sealing: As the foil heats, the wax or polymer coating melts, bonding the foil to the container's lip.
4. Cooling: After sealing, the container exits the induction field, and the seal cools, forming a strong bond.
While induction seals are effective in creating a hermetic barrier, they may not always provide clear evidence of tampering. Several factors can compromise their tamper-evident capabilities:
1. Material Compatibility: If the induction liner is not compatible with the container material, the seal may not bond properly, potentially allowing it to be removed without leaving clear evidence of tampering[2][4].
2. Sealing Conditions: Improper sealing conditions, such as insufficient power or incorrect coil height, can result in weak seals that might not leave visible evidence upon removal[4][8].
3. Container Shape and Size: Induction sealing equipment is designed for specific container sizes and shapes. Containers outside this range may not be sealed effectively, potentially compromising tamper evidence[2][6].
4. Consumer Expectations: Consumers often expect a "safety-seal" that leaves residue or is difficult to remove without evidence. However, some induction seals are designed to be easy to open, which can reduce their tamper-evident properties[3][5].
For applications where tamper evidence is critical, other sealing methods or additional tamper-evident features might be considered:
1. Tape Seals: These provide visible evidence of tampering by leaving adhesive residue when removed[5].
2. Flexible Pouches: Designed to tear upon opening, making it difficult to reseal without evidence[5].
3. Vacuum Seals: Often used with lug closures, these provide both freshness preservation and tamper evidence through an audible sound upon opening[5].
To enhance the tamper-evident properties of induction seals, manufacturers can consider:
1. Holographic Seals: These can provide advanced tamper evidence with multiple layers of holographic security features[3].
2. Residue Leaving Seals: Designing seals to leave a residue upon removal can improve tamper evidence[5].
3. Combination with Other Sealing Methods: Using induction seals in conjunction with other tamper-evident solutions can enhance overall security[5].
While induction seals are highly effective in creating hermetic barriers and preventing leaks, they may not always provide the desired level of tamper evidence. Factors such as material compatibility, sealing conditions, and consumer expectations can influence their effectiveness in this regard. By understanding these limitations and exploring alternatives or enhancements, manufacturers can ensure that their products meet both safety and security standards.
The primary limitations include material compatibility issues, improper sealing conditions, and the design of easy-to-open seals, which can reduce their tamper-evident properties.
Improvements can be made by using holographic seals, designing seals to leave residue upon removal, or combining induction seals with other tamper-evident methods.
Alternatives include tape seals, flexible pouches, and vacuum seals, which provide visible or audible evidence of tampering.
Induction sealing equipment is typically designed for specific container sizes and shapes. Containers outside this range may not be sealed effectively, compromising tamper evidence.
The FDA recognizes induction sealing as an effective method for providing tamper evidence, particularly in the pharmaceutical industry, where it has been used since the 1980s[1].
[1] https://www.enerconind.com/sealing/library-resource/why-induction-sealing-is-an-effective-method-of-tamper-evidence/
[2] https://www.ipharmachine.com/induction-seal-vs-heat-seal
[3] https://www.enerconind.com/sealing/library-resource/induction-foil-seals-for-tamper-evident-packaging/
[4] https://www.ipharmachine.com/top-induction-sealing-problems-and-the-solutions
[5] https://www.paramountglobal.com/knowledge/tamper-evident-packaging-solutions/
[6] https://movitherm.com/blog/induction-seal-vs-heat-seal-whats-the-difference/
[7] https://www.ptasia-group.com/post/the-future-of-pharmaceutical-packaging-tamper-evidence-consumer-convenience-improved-hygiene
[8] https://www.packagingstrategies.com/ext/resources/FDP/Home/Files/PDF/EnerconCapSealAppicationTroubleshooting.pdf
