Choosing the right sealing liner—be it PE foam liner or pressure sensitive liner—is critical for product safety, shelf life, customer satisfaction, and brand reputation. Both types are used widely in packaging for food, beverages, pharmaceuticals, cosmetics, and chemicals, but they have different properties, applications, and benefits. This comprehensive guide will help you understand what sets each apart and assist you in making the most informed decision for your packaging needs.
PE foam liners, or polyethylene foam liners, are compressible disks made from multiple layers of low-density polyethylene (LDPE) or cross-linked polyethylene. They sit inside the cap of a container, acting as a resilient barrier between the cap and the product.
- Soft and Compressible: The foam can withstand repeated compression without losing its integrity, ensuring a consistent seal.
- Non-Absorbent: These liners don't absorb the contents of the container, making them suitable for a wide range of liquids and powders.
- Chemically Resistant: PE foam is stable and compatible with products from cosmetics to chemicals.
- Non-Adhesive: PE foam liners do not stick to the container or cap and are easily removable.
- Plain PE Foam: Standard, non-laminated, used for general applications.
- Laminated PE Foam: Features foil, PET, or other film laminates for improved barrier properties.
- Food jars (spices, sauces, nut butters)
- Chemical bottles
- Cosmetics and personal care containers
- Pharmaceutical bottles

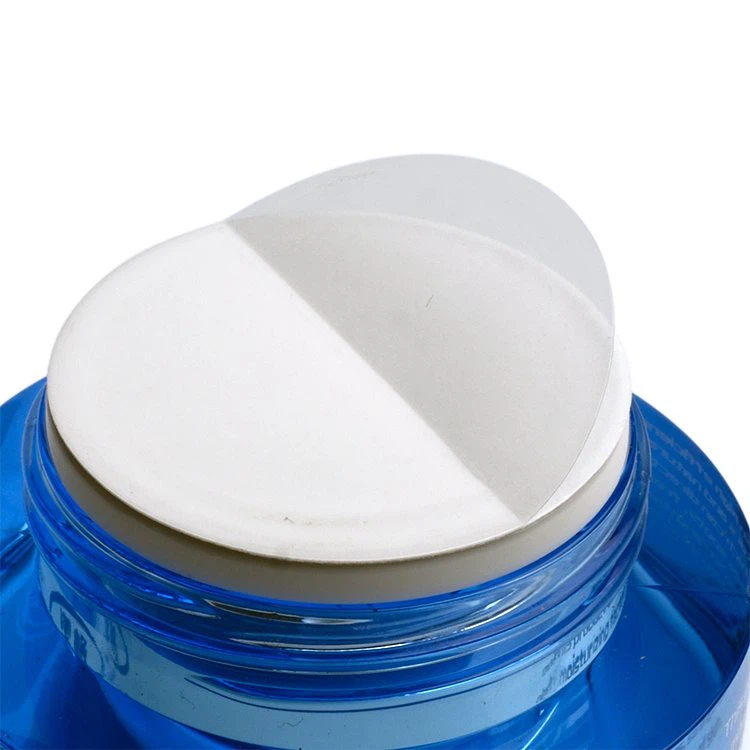

Pressure sensitive liners are polystyrene foam disks coated with a specially formulated adhesive on one side. These are loosely inserted into the cap, and when the cap is tightened onto the container, the adhesive side bonds to the rim, creating a seal.
- Seals Upon First Application: The adhesive is pressure-activated; the liner forms a bond when pressure is applied via cap tightening.
- Single-Use Seal: Once the cap is removed, the liner adheres to the container and is typically destroyed upon opening.
- No Additional Equipment Needed: Activation requires only torque from cap tightening.
- Variety of Sizes: Suitable for bottles and jars with wide or narrow openings.
- Dry food products (nuts, coffee, pills)
- Nutraceuticals and vitamins
- Cosmetic powders
- Household chemicals
- PE Foam Liner: Achieves its seal through compression between cap and container rim; relies on physical barrier, not adhesive.
- Pressure Sensitive Liner: Uses pressure-activated adhesive; provides a tamper-evident seal.
- PE Foam Liner: Removable and reusable if not deformed.
- Pressure Sensitive Liner: Generally destroyed upon removal; offers tamper evidence but not reusable.
- PE Foam: Offers excellent protection against moisture, air, and particulates but is not completely airtight for long-term liquid storage. Its high chemical resistance makes it suitable for volatile substances.
- Pressure Sensitive: Provides a good barrier against moisture and air for dry goods, but is less ideal for liquids as it could absorb some product or fail under significant pressure.
- PE Foam: Best for liquids, volatile chemicals, and where re-closing capability matters.
- Pressure Sensitive: Ideal for powders, pills, or dry granular products, especially where tamper evidence is crucial.
- PE Foam Liner: Generally less expensive per unit for standard sizes, especially when high volume is needed.
- Pressure Sensitive Liner: Slightly more expensive due to adhesive component, but often saves cost by eliminating induction sealing equipment.
- PE Foam Liners: Can be die-cut to fit many container sizes and sometimes feature layered materials for extra protection.
- Pressure Sensitive Liners: Offer customizable printing for branding, safety information, or instructions.
- You are packaging liquids that require a leak-resistant seal.
- The product's shelf life is short and the container will be opened and closed repeatedly.
- The contents are chemically aggressive and require the inertness of PE.
- Your product is a powder, tablet, or dry good requiring a tamper-evident seal.
- You want a liner that seals itself without special equipment.
- Cost efficiency is required for small-to-medium production runs.
- Placed inside the cap during capping (manually or automatically).
- Seal is formed during cap tightening via the compression of the foam material.
- Not bonded to the container—removable and reusable for repeated access.
- Inserted into the cap with adhesive side facing the bottle opening.
- On first tightening, pressure activates the adhesive, which sticks the liner to the bottle rim.
- Liner peels away from the cap and permanently adheres to the bottle, showing evidence of opening.
Pros:
- Reusable and removable
- High chemical resistance
- Effective for both dry and liquid products
- Cost-effective for mass production
Cons:
- No tamper evidence
- Limited sealing effectiveness for highly sensitive goods
- Not suitable for induction sealing processes
Pros:
- Tamper-evident
- No equipment needed for activation
- Ideal for dry goods
- Can feature custom branding/printing
Cons:
- Single use only—destroys upon opening
- Less effective for long-term liquid seal
- May absorb some product if liquid comes into contact
Both PE foam and pressure sensitive liners are made from plastics, but their environmental impact varies.
- PE Foam: 100% polyethylene; some varieties are recyclable, depending on local streams.
- Pressure Sensitive: Typically polystyrene foam, less commonly recycled, and contains adhesives that can reduce recyclability.
Sustainability in packaging can be improved by:
- Choosing recyclable or biodegradable options
- Reducing liner thickness where possible
- Working with suppliers who offer post-consumer recycled content liners
- Pressure sensitive liners are always tamper-proof: They're tamper-evident, not tamper-proof. The liner will indicate if the package was opened, but it could be peeled and replaced with effort.
- PE foam liners can't seal liquids: While less effective for carbonation or very volatile contents, PE foam liners provide reliable seals for many liquid products.
- One type is superior for all products: The best liner depends entirely on your product's specific needs and customer expectations.
- Assess your product: Is it liquid, dry, or powder?
- Think about shelf life and shipping conditions.
- Factor in user experience: Will consumers open and close the container frequently?
- Note any regulatory or safety requirements (e.g., tamper evidence, food safety).
- Evaluate the compatibility of liner material with product chemistry.
- Consider your operational capacity for installation—do you have induction sealing, or is manual capping preferred?
Selecting between PE foam liners and pressure sensitive liners is a matter of balancing product properties, packaging goals, and customer experience. PE foam liners offer flexibility, reusability, and resistance, making them suitable for a broad range of liquids and dry goods with frequent opening and closing. Pressure sensitive liners shine when tamper evidence, ease of application, and sealing of dry goods are top priorities. By understanding their differences and aligning your choice with your product's unique needs, you ensure optimal protection, customer trust, and efficiency throughout your packaging process.
PE foam liners seal through the physical compression of foam between the cap and bottle, creating a reusable, non-adhesive barrier. Pressure sensitive liners use a pressure-activated adhesive to bond with the bottle rim, forming a tamper-evident single-use seal.
Yes, PE foam liners are well-suited for many liquid products, providing a dependable seal. However, for products that are pressurized, carbonated, or require an especially high barrier, specialized liners may be a better option.
Pressure sensitive liners are commonly used with dry food products such as powders, nuts, and pills. They offer tamper evidence and are generally food-safe where certified. They are less ideal for high-moisture or liquid foods.
Consider the characteristics of your product (dry, liquid, volatile), customer requirements (reusable vs tamper-evident seal), and your packaging process (manual vs automated). Consulting with your supplier about liner compatibility with your specific product is also advisable.
Both PE foam and pressure sensitive liners can affect recyclability. PE foam is often more readily recycled, while pressure sensitive liners may not be accepted in all recycling streams due to the adhesive layer. Always check with local waste management authorities.
