Choosing the correct induction seal liner size is critical for ensuring product integrity, preventing leaks, and maintaining tamper evidence. A poorly sized liner can compromise shelf life, waste materials, and damage brand reputation. This guide provides a step-by-step approach to selecting the right liner size, supported by industry standards, real-world examples, and actionable tips.

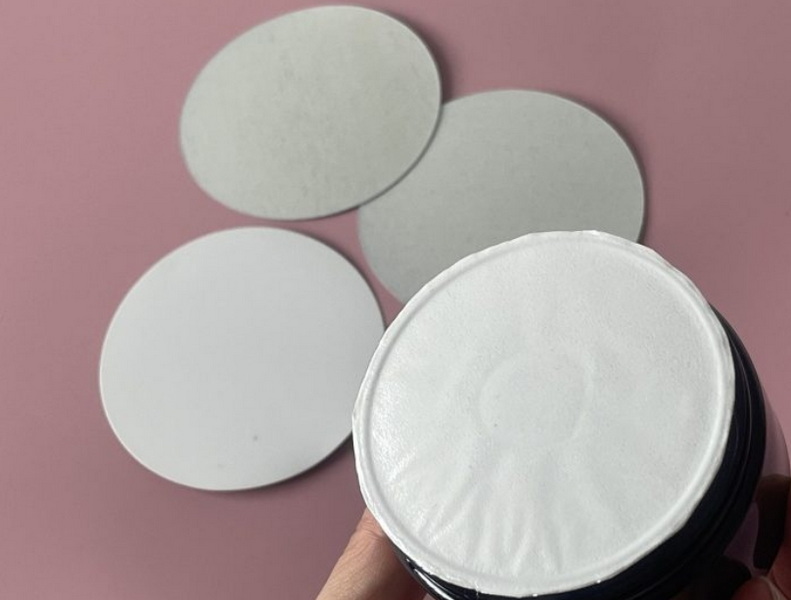

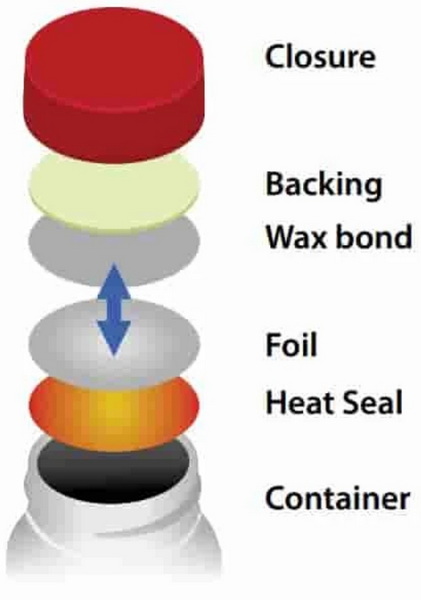

Induction seal liners are multi-layered components that create airtight seals on containers. They consist of:
1. Aluminum Foil Layer: Conducts heat during induction sealing.
2. Polymer Heat Seal Layer: Bonds to the container's rim.
3. Backing Layer: Foam or paper for insulation.
The liner's diameter must match the container's cap and rim dimensions to ensure proper adhesion and performance.
The liner diameter should match the container's inner neck diameter (the part that contacts the liner).
How to Measure:
- Use calipers to measure the inner neck (ID) of the container.
- For irregular shapes, trace the opening on paper and measure the diameter.
The liner must fit snugly inside the cap. Critical cap measurements include:
- Cap Inner Diameter (CID): Space available for the liner.
- Cap Depth: Determines liner thickness (e.g., shallow caps require thinner liners).
Example:
A cap with a 30mm CID and 5mm depth requires a 28mm liner (2mm smaller to avoid buckling).
- Liquids: Require precise seals to prevent leaks.
- Powders/Granules: Need thicker liners to resist abrasion.
- Gas-Emitting Products: Use vented liners slightly larger than the neck to allow gas release.
1. Tools Needed: Digital calipers or a flexible measuring tape.
2. Process:
- Measure the inner diameter (ID) of the container neck.
- Record the measurement in millimeters (e.g., 28mm).
Table: Common Container Neck Sizes and Liner Diameters
| Container Neck ID (mm) | Recommended Liner Diameter (mm) |
|---|---|
| 20 | 18–19 |
| 28 | 26–27 |
| 38 | 36–37 |
| 45 | 43–44 |
- Cap Inner Diameter (CID): Subtract 1–2mm from the CID for liner diameter.
- Cap Depth: Choose liner thickness ≤80% of cap depth (e.g., 4mm liner for a 5mm-deep cap).
Example:
A cap with 30mm CID and 6mm depth requires a 28mm liner with ≤4.8mm thickness.
- Hot-Fill Products: Use liners 1–2mm smaller to accommodate expansion.
- Carbonated Beverages: Opt for high-burst-strength liners (≥40 psi).
Reputable induction seal liner manufacturers like Pres-On or Enercon provide sizing charts based on container type.
A liner thicker than the cap depth will prevent proper closure, leading to leaks.
Stiff liners (e.g., thick foam) may not conform to irregular rims.
Hot-fill or chemical products require liners with specific heat resistance or chemical compatibility.
Accurately measures neck and cap dimensions (e.g., Mitutoyo 500-196-30).
- Pres-On HISU Series Guide: Matches liners to common container sizes.
- Selig Group Compatibility Tool: Online calculator for liner dimensions.
Many manufacturers offer sample kits with liners of varying sizes for testing.
Company: Organic Juice Manufacturer
- Challenge: Leakage in 38mm PET bottles during transport.
- Solution: Switched from 36mm to 37mm vented liners to accommodate gas expansion.
- Result: Zero leaks reported post-implementation.
Specifies burst pressure requirements for pharmaceutical packaging.
Mandates food-safe materials for liners in consumable products.
1. AI-Powered Sizing Tools: Software that recommends liners based on 3D container scans.
2. Eco-Friendly Liners: Biodegradable materials with standardized sizing for recyclability.
Determining the correct induction seal liner size involves precise measurement of container necks, cap dimensions, and product requirements. Always test samples under real-world conditions and consult manufacturers for tailored solutions. As automation and sustainability advance, smart sizing tools and eco-conscious materials will simplify this critical process.
No. Slight variations in neck diameter or cap depth can affect seal integrity. Always measure each container type individually.
Wrap a string around the neck, mark the circumference, and divide by π (3.14) to estimate diameter.
Opt for ultra-thin liners (e.g., 2mm foam backing) or contact manufacturers for custom solutions.
No. Oversized liners can buckle, causing poor adhesion and leaks.
Conduct a burst pressure test (≥30 psi for liquids) and check for residue-free removal.
