Views: 222 Author: Lake Publish Time: 2025-03-21 Origin: Site
Content Menu
● Introduction to Induction Bottle Cap Liners
>> Key Components of Induction Liners
● Types of Induction Bottle Cap Liners
>> 1. One-Piece Induction Liners
>> 2. Two-Piece Induction Liners
● Factors to Consider When Choosing an Induction Liner
● Steps to Select the Best Induction Liner
>> 3. Cosmetics
● FAQ
>> 1. How do I know if a liner is compatible with my container?
>> 2. What's the difference between one-piece and two-piece liners?
>> 3. Can induction liners seal glass bottles?
>> 4. How do I prevent liner residue on my product?
>> 5. Are induction liners recyclable?
Induction bottle cap liners are critical for creating tamper-evident, leak-proof seals on containers, ensuring product safety and freshness. Selecting the right liner involves understanding your product's needs, container material, and regulatory requirements. This guide explores the types of induction liners, key selection criteria, and industry applications to help you make an informed decision.

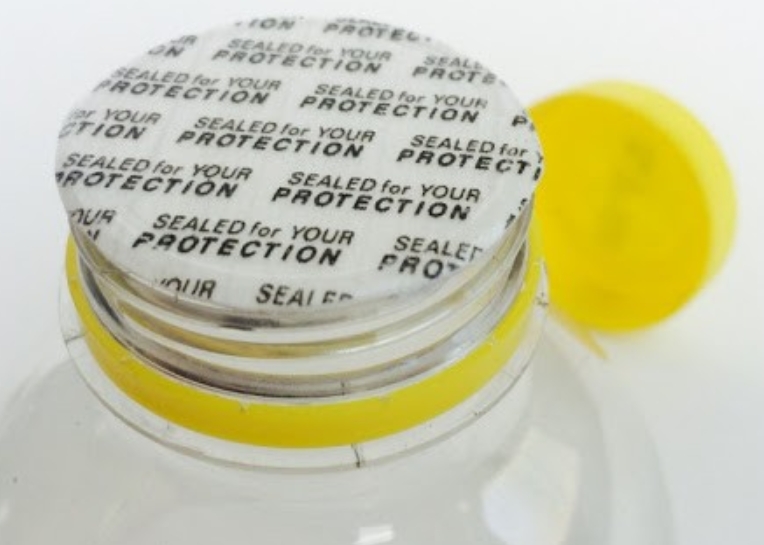

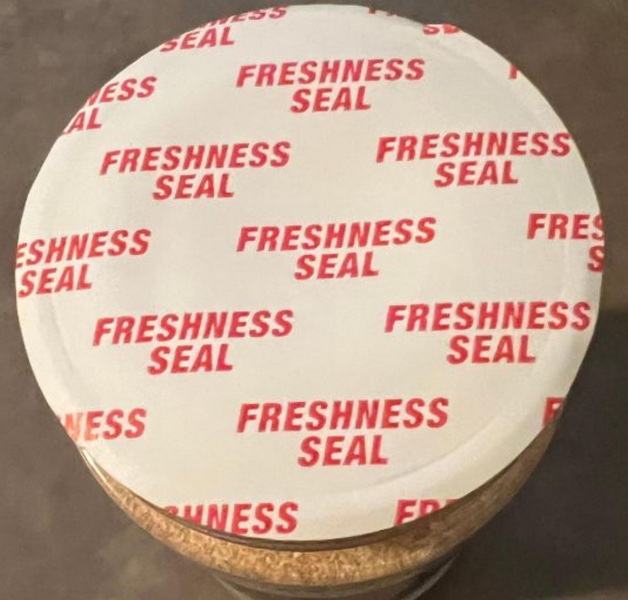

An induction bottle cap liner is a multi-layered seal inserted into a closure. When exposed to electromagnetic induction, it bonds to the container's lip, forming an airtight barrier. These liners are widely used in industries like food, pharmaceuticals, and cosmetics to prevent leaks, extend shelf life, and provide tamper evidence.
- Heat-Seal Layer: Bonds to the container (e.g., LDPE for plastics, GlassFuze™ for glass).
- Aluminum Foil: Conducts heat during sealing.
- Backing Material: Foam, pulpboard, or wax for structural support.
- Structure: Combines foil, polymer, and backing into a single layer.
- Use Case: Ideal for dispensing closures (e.g., condiments, shampoos).
- Advantage: Leaves no residue in the cap after removal.
- Structure: Separates into foil (adheres to the container) and backing (remains in the cap).
- Use Case: Pharmaceuticals, chemicals, resealable products.
- Advantage: Provides a resealable barrier against moisture and oxygen.
- Structure: Includes a breathable membrane or valve.
- Use Case: Products sensitive to pressure changes (e.g., disinfectants, agricultural chemicals).
- Advantage: Prevents container bloating during transport.
- Structure: Features a pull tab for easy opening.
- Use Case: Liquids like sauces, juices, and lotions.
- Advantage: Enhances consumer convenience and tamper evidence.
Match the liner's heat-seal layer to the container's resin (e.g., PET liners for PET bottles, PE liners for HDPE containers). Glass and metal require specialized coatings like GlassFuze™.
- Aggressive Products: Chemicals, acids, and pharmaceuticals require barrier layers (e.g., EVOH).
- Food-Grade Products: Ensure FDA-compliant materials.
- Oil-Based Products: Use liners with oil-resistant polymers.
- Pull Tabs: Lift ‘n' Peel™ liners simplify opening.
- Smooth Edges: Reduce consumer frustration and negative feedback.
- Torque: 8–12 inch-pounds for most caps (adjust for glass vs. plastic).
- Induction Power: 30–40% power for standard liners.
- Dwell Time: 1–2 seconds.
| Parameter | Recommendation |
|---|---|
| Torque | 8–12 in-lbs |
| Power | 30–40% |
| Dwell Time | 1–2 seconds |
- FDA: Tamper evidence for OTC drugs and food.
- REACH/EU: Chemical safety standards.
1. Define Product Requirements
- Is the product liquid, powder, or acidic?
- Does it require venting or resealing?
2. Choose Liner Type
- One-piece for dispensing closures.
- Two-piece for pharmaceuticals.
3. Test Compatibility
- Conduct dye penetration or vacuum decay tests.
4. Partner with a Reliable Supplier
- Verify certifications (ISO 9001, FDA).
- Example: Salad dressings, juices.
- Liner Type: Lift N Peel™ for easy opening.
- Example: Liquid medications.
- Liner Type: Two-piece with barrier layers.
- Example: Serums, creams.
- Liner Type: One-piece with tamper-evident seals.
Choosing the best induction bottle cap liner requires balancing product needs, container compatibility, and regulatory standards. By selecting the right type (one-piece, two-piece, vented) and optimizing sealing parameters, businesses can ensure product integrity, consumer satisfaction, and compliance. Partnering with certified suppliers further enhances reliability and cost efficiency.
Test adhesion using small batches and consult material compatibility charts (e.g., PET liners for PET bottles).
One-piece liners fully adhere to the container, while two-piece liners leave a resealable backing in the cap.
Yes, but use GlassFuze™-coated liners for optimal bonding.
Ensure proper torque and use wax-free liners for clean removal.
Yes, separate aluminum foil from plastic components before recycling.
