Packaging plays a critical role in maintaining the quality, safety, and freshness of products. Among the many components used to achieve this, cap seal liners are often overlooked despite their crucial importance. These small inserts are engineered to provide a multitude of benefits, such as preventing leaks, blocking contamination, and extending shelf life by deterring spoilage. Whether for food, pharmaceuticals, cosmetics, or chemicals, cap seal liners are integral to protecting products from a range of environmental threats.
This article thoroughly explores the science and technology behind cap seal liners, explaining how they work, the types available, and the immense value they bring to manufacturers and consumers alike. By delving into their materials, design, and usage across diverse industries, we can appreciate why cap seal liners are an essential component in safe and effective packaging solutions.

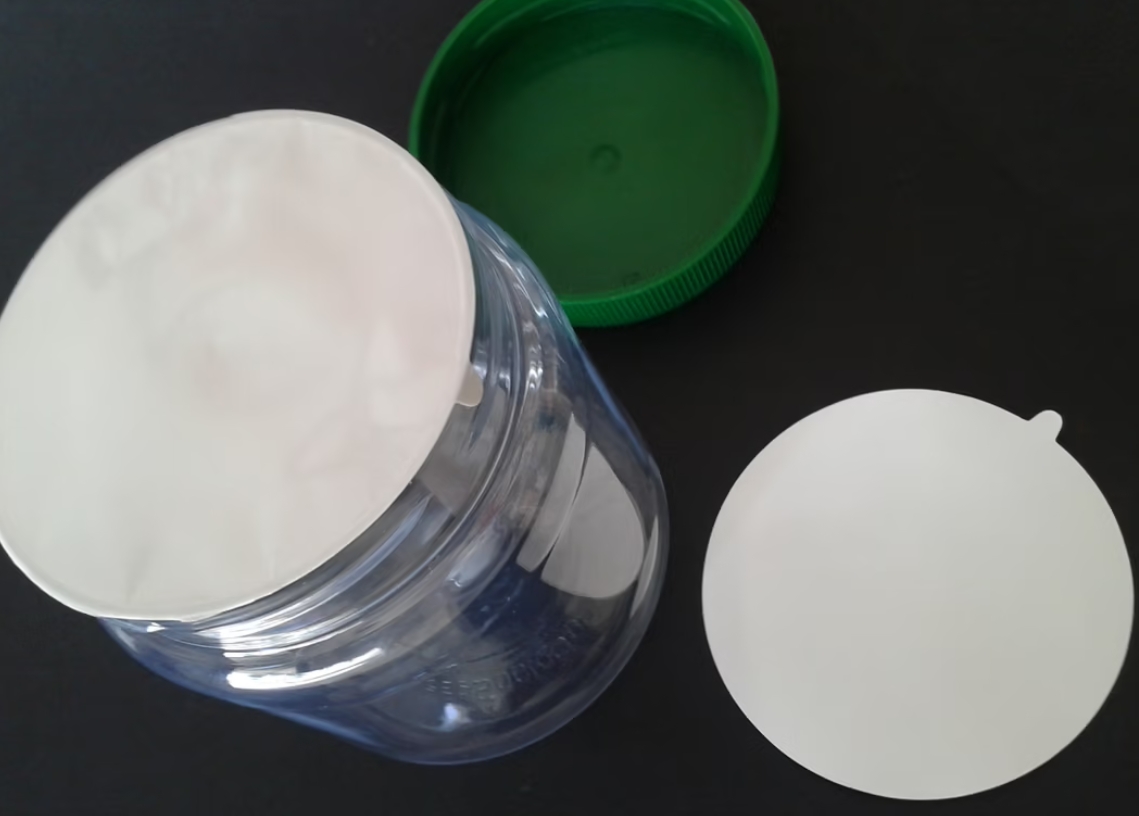

Cap seal liners are thin layers of specialized material placed inside bottle and jar caps. They act as vital barriers between the product and the external environment. While small in size, their impact is profound: by forming a tight seal at the interface of the cap and container, they ensure product integrity from the point of manufacture to the moment the consumer opens the package.
Cap seal liners perform several essential functions:
- Leak Prevention: They create a reliable seal that prevents liquid or semi-liquid products from seeping out, regardless of how the container is handled during storage or transport.
- Contamination Protection: By forming a secure barrier, liners keep out dust, microbes, moisture, and gases that could compromise product safety.
- Spoilage Reduction: Liners block exposure to oxygen and humidity, which are key contributors to spoilage, especially in food and pharmaceuticals.
- Tamper Evidence: Certain liners provide visible signs if a package has been opened before purchase, building consumer trust.
- Resealability: Some liners, especially in two-piece designs, allow for resealing after first use, helping maintain product quality even after opening.
Understanding these core benefits allows us to appreciate the indispensable role of cap seal liners in modern packaging.
Cap seal liners come in various designs and materials, each suited to specific product requirements and industries.
Pressure-sensitive liners are made from foam with an adhesive side that bonds to the rim of the container when pressure is applied by closing the cap. They are easy to use and require no heat or additional equipment, making them suitable for dry goods, powders, and some viscous products. Although they do not offer true tamper-evidence or ideal sealing for liquids, they are popular for their simplicity and cost-effectiveness.
Foam liners, generally crafted from polyethylene, provide a compressible cushion that ensures a tight fit when the cap is screwed onto the bottle or jar. While not always fully airtight, foam liners are excellent for preventing leaks and are resistant to taste or odor transmission. They are widely used for cosmetics, household products, and even select food items.
Heat-seal liners are applied using heat, either through conduction or induction. The heat melts a polymer coating on the liner, fusing it securely to the container's mouth. This creates a strong, sometimes watertight, and tamper-evident seal. Heat-seal liners are especially common in food packaging due to their ability to effectively block moisture and preserve freshness.

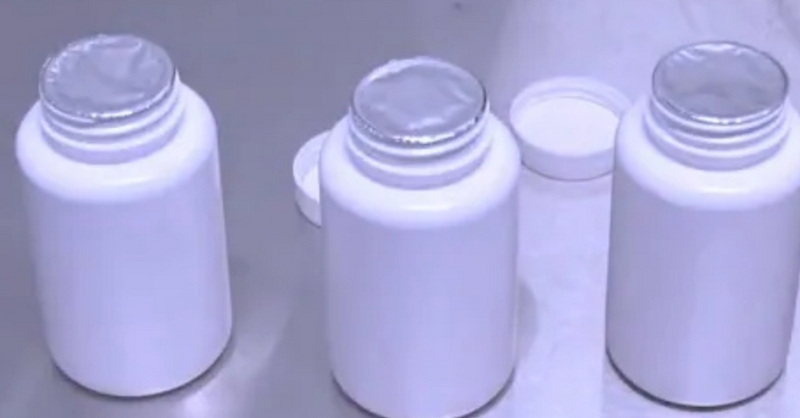

Induction seal liners combine foil and a polymer layer. An induction sealing machine generates an electromagnetic field, heating the foil and causing the polymer to melt and adhere to the container's rim, resulting in a hermetic, airtight seal. Induction liners are the gold standard for tamper evidence, leak prevention, and shelf-life extension in the food, beverage, and pharmaceutical industries.
Two-piece liners incorporate both a foil seal (usually for tamper-evidence and initial airtight protection) and a backing layer, often made of foam or pulp. Once the foil is removed after first opening, the backing remains in the cap, providing a resealable seal for continued product protection.
These liners combine a pulp base with a thin layer of polyvinyl film. They offer good chemical resistance and are suitable for products like mild acids or alcohols. While not intended for active chemicals, they provide reliable sealing for inert materials.
Plastisol liners are molded plastic gaskets, typically integrated into metal caps. When heated and then cooled, they form vacuum-tight, acid-resistant seals ideal for canning, pickling, and other high-temperature applications.
Each liner type offers unique benefits, and the choice depends on the nature of the product, its sensitivity, required shelf life, and logistics needs.
One of the primary purposes of a cap seal liner is to act as a physical barrier that contains the product.
- Conformity: Liners are designed to be slightly compressible, allowing them to fill micro-irregularities or imperfections at the container's rim, forming a tight seal even when the surface is less than perfectly flat.
- Material Selection: Foams, films, and foils possess inherent leak-resistant properties. Their combination maximizes seal reliability.
- Heat-Sealing Technologies: Induction and heat-seal liners bond directly to the container, not relying on the cap's ongoing integrity to maintain a seal. This makes accidental spills, leaks, or rupturing during transit highly unlikely.
- Reseal Ability: Cap liners such as two-piece or foam liners offer secondary sealing after the original barrier is broken, further containing any potential leaks after first use.
By employing the right liner technology, manufacturers can virtually eliminate the risk of products leaking—a factor crucial for liquid and semi-liquid goods.
- Beverages: Preventing leaks during transportation and on store shelves.
- Oils and Chemicals: Sensitive to air and prone to leaking, these products rely on robust lining solutions.
- Cosmetics: To protect valuable and sensitive formulations.
The result is greater consumer satisfaction, lower product returns, and enhanced brand reputation.
A container is only as effective as its ability to keep its contents pure. Cap seal liners excel at defending products from contamination.
- Microbes: Liners block the entry of bacteria, molds, and yeasts that can lead to spoilage or health risks.
- Moisture: Many liners are water-resistant or hydrophobic, preventing ingress of humidity that could change the physical or chemical composition of a product.
- Oxygen: Oxygen exposure accelerates degradation in food, beverages, and pharmaceuticals. Liners provide an airtight seal, keeping oxygen at bay.
- Particles and Dust: Liners stop dust and airborne particulates from entering, ensuring cleanliness and safety.
- Cross-Contamination: In transport or retail environments, the liner creates an additional defense layer in case the outer seal is compromised.
- Pharmaceuticals: Strict regulatory standards require secure protection to ensure safety and dosage integrity.
- Food Industry: Liners help meet food safety regulations and maintain product freshness.
- Chemical Products: Preventing reaction with the environment and protecting handlers from hazardous materials.
Cap seal liners, when correctly chosen and applied, raise the standard for hygiene and contamination control.
Spoilage, whether due to biological, chemical, or physical processes, is a persistent challenge for all packaged goods.
- Control of Gas Exchange: High-barrier liners restrict the ingress or egress of gases like oxygen and carbon dioxide, maintaining optimal internal conditions and preventing reactions that cause spoilage.
- Limiting Moisture Migration: Blocking water vapor prevents caking in powders and staling in processed foods.
- Preservation of Volatiles: For many products, especially those with essential oils or flavors, liners minimize the loss of volatile compounds, retaining aroma and quality.
- UV and Light Protection: Some liner materials include UV-blocking additives to further shield sensitive contents from degradation by light exposure.
- Temperature Fluctuations: Liners buffer the contents from sudden temperature changes, reducing the risk of condensation inside the package.
The outcome is a measurable increase in shelf life, reduction in waste, and assurance of quality until the end user opens the container.
By keeping products fresh and safe longer, cap seal liners help reduce product recalls, minimize spoilage-related losses, and contribute to sustainability by lowering the volume of waste sent to landfills.
A critical aspect of packaging is providing consumers with clear visual cues that a product has not been opened or altered. Cap seal liners offer several forms of tamper evidence:
- Breakable Foil Seals: Any attempt to open the package destroys the foil, making tampering immediately evident.
- Printed Liners: Some liners are printed with messages that reveal tampering when disturbed.
- Holographic or Color-Changing Elements: Advanced liners incorporate security features that change appearance if the seal is broken or tampered with.
By integrating these features, manufacturers assure customers of product safety and build brand integrity.
Choosing liner materials is a science guided by several factors, including chemical compatibility, regulatory compliance, and product needs.
- Polyethylene (PE) Foam: Powerful for leak prevention and suitable for a wide array of products.

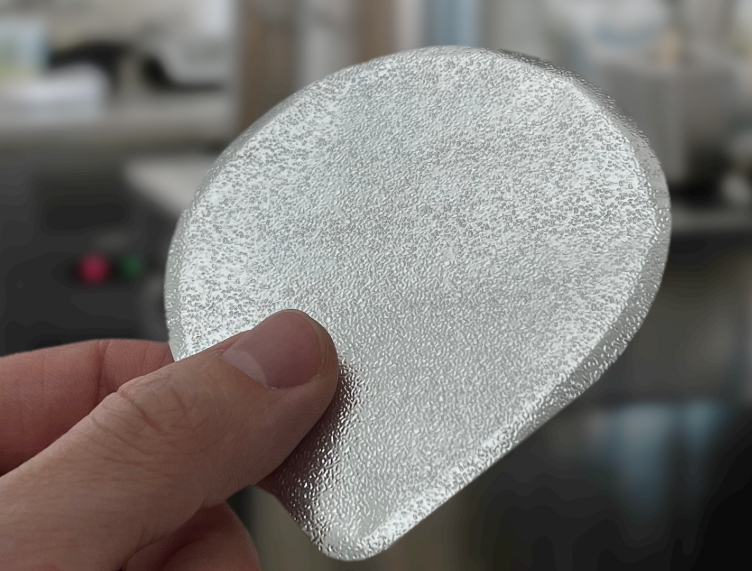

- Aluminum Foil: Provides a robust barrier to oxygen, moisture, and light, often used in induction seals.
- Pulp Board: Used for dry products or those requiring mild moisture buffering.
- Polyvinyl Film: Offers resistance to oils and mild acids, suitable for specialty applications.
- Silicone Rubber: Applied for demanding applications needing superior chemical resistance.
Matching the liner material to the product ensures optimal performance, compliance with industry standards, and a reliable customer experience.
Cap seal liners are ubiquitous across several major industries, each with unique requirements:
Ensuring product freshness, blocking contamination, and extending shelf life are top priorities. Induction seal liners are particularly favored for their strong sealing properties and regulatory compliance.
Demanding strict hygiene and tamper evidence, pharmaceutical applications depend on liners for both patient safety and regulatory requirements.
Preserving volatile ingredients, preventing leaks in oils and creams, and maintaining an elegant unboxing experience make liners essential for cosmetic products.
Many chemicals require special consideration for compatibility and resistance to permeation. Proper liner selection ensures both safety and reduction of hazardous exposure.
For laboratory samples, caps with precision liners prevent cross-contamination and preserve sample integrity during handling, shipping, and storage.
These diverse applications underline the importance of liner customization and proper selection.
Choosing the correct liner involves evaluating several variables:
- Product Type: Consider if the product is liquid, solid, powder, oily, acidic, or volatile.
- Chemical Compatibility: Ensure no reaction between liner material and product.
- Regulatory Compliance: Food, pharma, and chemical regulations may specify liner types.
- End-User Convenience: Some liners should be easy to peel, others resealable.
- Shelf Life Needs: Select liners that maximize product longevity.
- Logistics: Evaluate the need for protection against leaks and spoilage during shipping.
Collaborating with packaging experts enables brands to tailor liner solutions that strike the right balance between performance and cost.
Recent advances have ushered in a new era of liner functionality:
- Interactive Liners: Some now serve as QR code platforms for digital engagement.
- Sustainability: Manufacturers are developing recyclable or biodegradable liner materials.
- Enhanced Security: Liners equipped with smart elements like NFC tags or tamper-evidence features for better traceability and consumer confidence.
- Improved Barrier Properties: Nanomaterial enhancements for greater protection against oxygen, moisture, and migration of undesirable elements.
Innovation continues to elevate liner effectiveness while supporting broader consumer and environmental goals.
While cap seal liners are highly reliable, certain challenges need mindful management:
- Incorrect Application: Poor capping torque or misaligned liners can compromise the seal. Strict quality checks are essential.
- Material Incompatibility: Failure to match liner material and product can lead to leaks, contamination, or liner degradation.
- Overheating During Induction Sealing: Excess heat can burn pinholes in the liner or deform materials, causing leakers.
- Environmental Factors: Extremes of heat, cold, or humidity require liners with robust barrier properties.
Working with reputable suppliers and applying rigorous testing reduces these risks and ensures liner performance matches marketing claims.
To ensure maximum effectiveness of cap seal liners:
- Conduct compatibility and stability testing for new products.
- Implement routine checks for capping torque and liner placement.
- Select liners in consultation with suppliers familiar with regulatory and logistical requirements of your industry.
- Educate end-users on recognizing and responding to compromised seals.
Adhering to these best practices sustains product safety, customer confidence, and brand reputation.
Cap seal liners might appear to be a minor element in packaging, but their contribution to product safety, freshness, and consumer trust is monumental. By effectively preventing leaks, shielding contents from contamination, and delaying spoilage, they become the unsung heroes of the packaging world. Their versatility, technological advancement, and adaptability across industries make them indispensable in the quest for longer shelf life, less waste, and delighted customers.
As products become more sophisticated and regulatory demands continue to rise, the science and engineering embedded in cap seal liners will only grow in importance. Forward-thinking manufacturers should treat liner selection and application as a strategic priority, ensuring their products reach customers in perfect condition—every time.
Cap seal liners come in several types, including pressure-sensitive liners, foam liners, heat-seal liners, induction seal liners, and two-piece liners. Pressure-sensitive liners use an adhesive to bond to the container rim, foam liners provide leak prevention without being fully airtight, heat-seal and induction seal liners use heat to form airtight seals, and two-piece liners combine foil and backing for resealability. Choosing the right type depends on product characteristics and packaging requirements.
Selecting the right liner involves considering product type (liquid, solid, powder), chemical compatibility, regulatory compliance, expected shelf life, need for tamper evidence, and convenience features like resealability. Working with experienced suppliers and testing different options ensures the liner matches your product's needs.
Yes, reputable suppliers use materials that comply with food and pharmaceutical regulations, ensuring liners are non-toxic and safe for direct contact. It is important to verify that the selected liner material is certified and suitable for the specific contents it will protect.
If you encounter a product with a broken, loose, or missing cap seal liner, do not use the product. Report the issue to the retailer or manufacturer, since compromised liners mean the product may be contaminated or spoiled.
Some modern liners are designed with recyclability or biodegradability in mind. However, many still contain mixed materials that are not easily recyclable. Efforts are ongoing to improve the environmental footprint of cap seal liners, and consumers should consult local recycling guidelines.
