Selecting the right cap seal liner is a crucial decision for manufacturers, packaging engineers, and brand owners. The cap liner not only serves as a barrier to protect the product but also plays a significant role in ensuring product freshness, tamper evidence, and leak prevention. Among the many liner options available, pressure sensitive and induction cap seal liners are two of the most common choices. Each offers unique properties, advantages, and limitations that can significantly impact the quality and safety of your product.
This comprehensive guide delves into the differences between pressure sensitive and induction cap seal liners, their applications, benefits, and challenges. By understanding these aspects, you can make an informed decision that aligns with your product requirements, regulatory standards, and consumer expectations.
Cap seal liners are materials inserted inside the caps of containers to create a seal between the cap and the container's mouth. They serve several functions:
- Preventing leaks and spills during transportation and storage
- Protecting the contents from contamination and moisture
- Providing tamper evidence to assure consumers of product integrity
- Extending shelf life by minimizing exposure to air and external elements
The choice of liner material and sealing technology depends on the product type, packaging material, regulatory requirements, and desired shelf life.
Pressure sensitive liners are self-adhesive liners that stick to the container's rim when the cap is applied with pressure. They are typically made from a foam or paper base coated with a pressure-sensitive adhesive. These liners do not require heat, induction, or specialized equipment for application, making them a convenient option for small-scale operations or short production runs.
When the cap is screwed onto the container, the pressure causes the adhesive side of the liner to bond with the container's lip. Upon removing the cap, the liner remains attached to the container, providing a seal that helps prevent leaks and contamination.
Pressure sensitive liners are commonly used for:
- Dry products such as vitamins, supplements, and pharmaceuticals
- Powders and granules
- Food products like spices and snacks
- Personal care items
They are not typically recommended for liquid products, as the adhesive may lose effectiveness if exposed to moisture or oil.
- Ease of Application: No need for heat induction or specialized equipment
- Cost-Effective: Lower initial investment compared to induction sealing systems
- Suitable for Small Batches: Ideal for startups, small businesses, or test runs
- Tamper Evidence: Provides a visible indication if the seal has been tampered with
- Limited Barrier Properties: Not suitable for aggressive chemicals or products requiring a high barrier against moisture or oxygen
- Not for Liquids: Adhesive may fail with liquid products
- Shorter Shelf Life: The seal may degrade over time, especially in humid environments
- Less Secure: Easier to remove and reapply, which may compromise tamper evidence

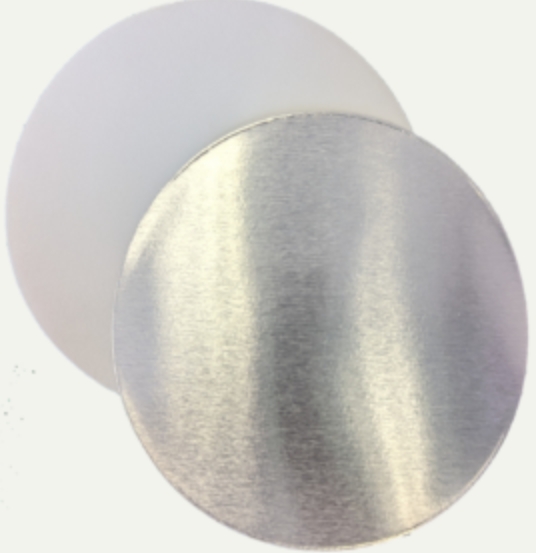

Induction cap seal liners are multi-layered liners that require electromagnetic induction sealing equipment to bond the liner to the container's rim. These liners typically consist of a foil layer, a polymer layer, and a backing material. The induction process creates a hermetic seal, offering superior protection and tamper evidence.
During the induction sealing process, the cap with the liner is placed on the filled container. The container passes under an induction sealing head, which emits an electromagnetic field. This field heats the foil layer in the liner, causing the polymer layer to melt and bond to the container's rim. Once cooled, the result is a strong, tamper-evident seal.
Induction liners are widely used for:
- Liquid products such as beverages, oils, and chemicals
- Pharmaceuticals and nutraceuticals
- Food products requiring extended shelf life
- Agrochemicals and industrial products
Their robust sealing properties make them suitable for a wide range of applications, including products that require leak-proof and tamper-evident packaging.
- Superior Seal Integrity: Provides a hermetic, leak-proof seal
- Enhanced Tamper Evidence: Difficult to remove and reapply without visible damage
- Extended Shelf Life: Excellent barrier against moisture, oxygen, and contaminants
- Versatile: Suitable for liquids, powders, and solids
- Regulatory Compliance: Meets stringent packaging standards for pharmaceuticals and food
- Requires Equipment: Needs induction sealing machinery, which involves higher initial investment
- Complex Application: Not as straightforward as pressure sensitive liners
- Not Suitable for All Materials: Some container materials may not be compatible with induction sealing
- Higher Cost for Small Runs: Less economical for short production runs or startups
- Pressure Sensitive Liners: Applied by screwing the cap onto the container; no equipment needed.
- Induction Cap Seal Liners: Requires induction sealing equipment to activate and bond the liner.
- Pressure Sensitive Liners: Adequate for dry products; less effective for liquids.
- Induction Cap Seal Liners: Provides a strong, hermetic seal suitable for liquids and products requiring high barrier protection.
- Pressure Sensitive Liners: Offers basic tamper evidence; easier to remove and reapply.
- Induction Cap Seal Liners: Offers robust tamper evidence; removal destroys the seal.
- Pressure Sensitive Liners: Lower upfront cost; suitable for small batches.
- Induction Cap Seal Liners: Higher initial investment in equipment; more cost-effective for large-scale production.
- Pressure Sensitive Liners: Best for dry, low-moisture products.
- Induction Cap Seal Liners: Suitable for a wide range of products, including liquids and aggressive chemicals.
Consider whether your product is a liquid, solid, powder, or granule. Liquids generally require a more robust seal, making induction liners the preferred choice.
The container's material (plastic, glass, metal) affects liner compatibility. Induction sealing works best with certain plastics and glass, while pressure sensitive liners are more universally compatible but less effective for challenging applications.
Pharmaceuticals, food, and chemical products may have strict packaging regulations. Induction liners often meet these requirements more readily due to their superior seal integrity and tamper evidence.
For small-scale production or startups, pressure sensitive liners offer a low-cost, simple solution. For large-scale operations, the investment in induction sealing equipment can be justified by the benefits of improved seal quality and efficiency.
If your product requires an extended shelf life or will be stored in humid or challenging environments, induction liners provide better protection against moisture and oxygen ingress.
Consider how easy it is for consumers to open the package and whether tamper evidence is a priority. Induction liners provide a clear indication of tampering, which can enhance consumer trust.
A spice manufacturer switched from pressure sensitive liners to induction liners after experiencing complaints about product clumping due to moisture ingress. The induction liners provided a hermetic seal, maintaining product quality and extending shelf life.
A nutraceutical company required tamper-evident packaging for their liquid supplements. Induction liners were chosen for their robust seal and compliance with regulatory standards, ensuring product safety and consumer confidence.
A small cosmetics startup used pressure sensitive liners for their powdered makeup products. The simplicity and low cost of pressure sensitive liners allowed them to launch their product line without significant investment in equipment.
As sustainability becomes increasingly important, manufacturers are evaluating the environmental impact of cap seal liners. Pressure sensitive liners are generally easier to recycle due to their simple construction. Induction liners, with their multi-layered design, may present recycling challenges but offer better product protection, potentially reducing product waste.
Some companies are developing recyclable or biodegradable liner materials to address these concerns. When choosing a liner, consider the end-of-life impact and explore options that align with your sustainability goals.
Advancements in materials science and manufacturing have led to new liner options with improved performance and sustainability profiles. These include:
- Recyclable Induction Liners: Made from mono-materials for easier recycling
- Biodegradable Pressure Sensitive Liners: Designed to break down in composting environments
- Custom-Printed Liners: For branding and consumer engagement
Staying informed about these innovations can help you make future-proof packaging decisions.
Choosing between pressure sensitive and induction cap seal liners is a decision that depends on your product type, packaging material, regulatory requirements, production scale, and sustainability goals. Pressure sensitive liners offer simplicity and cost-effectiveness for dry products and small batches, while induction liners provide superior seal integrity, tamper evidence, and versatility for a wide range of applications.
By carefully evaluating your product's needs and the advantages of each liner type, you can ensure product safety, quality, and consumer satisfaction. As technology evolves, new liner materials and sealing methods will continue to emerge, offering even more options for innovative and sustainable packaging.
The primary difference lies in their application and sealing method. Pressure sensitive liners adhere to the container's rim using pressure and do not require any equipment, making them ideal for dry products and small production runs. Induction cap seal liners, on the other hand, require induction sealing equipment to create a hermetic seal, providing superior protection and tamper evidence for liquids and products needing a high barrier.
Pressure sensitive liners are generally not recommended for liquid products. The adhesive used in these liners can lose effectiveness when exposed to moisture or oils, potentially leading to leaks or compromised seals. For liquids, induction cap seal liners are a better choice due to their robust, leak-proof sealing properties.
Traditional induction cap seal liners are made from multiple layers, including foil and polymers, which can make recycling challenging. However, advancements in liner technology have led to the development of recyclable and mono-material induction liners. Always check with your liner supplier and local recycling guidelines for the most sustainable options.
Consider factors such as product type (liquid, solid, powder), packaging material, regulatory requirements, desired shelf life, production scale, and sustainability goals. Pressure sensitive liners are best for dry products and small batches, while induction liners are suitable for a wide range of products, especially those requiring robust sealing and tamper evidence.
Pressure sensitive liners have a lower upfront cost and do not require special equipment, making them cost-effective for startups and small runs. Induction cap seal liners require an initial investment in induction sealing equipment but offer greater efficiency and protection for large-scale production. The total cost should be evaluated based on production volume, product requirements, and long-term benefits.
