Choosing the right cap seal liner thickness is a critical decision in packaging design for industries ranging from food and beverage to pharmaceuticals, cosmetics, and chemicals. The cap seal liner serves as the barrier between the product and the external environment, ensuring product freshness, safety, and integrity. However, the effectiveness of this barrier depends not only on the liner material but also on its thickness. Selecting the appropriate thickness involves understanding the properties of the product, the packaging requirements, regulatory standards, and the end-use environment.
This comprehensive guide will explore the factors influencing cap seal liner thickness, the types of liners available, their applications, and best practices for identifying the right thickness for your specific needs.
Cap seal liners are materials inserted inside the caps of containers to create a secure seal. Their primary functions include:
- Preventing leaks and spills
- Protecting contents from contamination
- Preserving product freshness and shelf life
- Providing tamper-evidence
- Ensuring regulatory compliance
The liner acts as a gasket, filling the space between the cap and the container rim, and compensating for any irregularities on the container's sealing surface.
The thickness of a cap seal liner directly impacts its sealing performance and the protection it offers. Here's why liner thickness matters:
- Sealing Integrity: Thicker liners can compensate for imperfections in the container rim, providing a more reliable seal.
- Chemical Resistance: The liner must be thick enough to prevent product migration or interaction with the cap material.
- Compression and Cushioning: Adequate thickness ensures the liner compresses properly, maintaining a tight seal even after repeated opening and closing.
- Barrier Properties: For products sensitive to moisture, oxygen, or light, a thicker liner can enhance barrier protection.
- Ease of Application: Overly thick liners may be difficult to insert or may prevent the cap from closing properly, while liners that are too thin may not provide adequate protection.
- Physical State: Liquids, powders, creams, and solids each have different sealing requirements. Liquids generally require thicker liners to prevent leaks.
- Chemical Composition: Aggressive chemicals or volatile substances may require thicker, more resistant liners to prevent degradation or contamination.
- Viscosity: Highly viscous products may exert more pressure on the liner, necessitating greater thickness for durability.
- Container Material: Glass, plastic, and metal containers interact differently with liners. For example, glass may require a thicker liner to accommodate minor imperfections.
- Neck Finish and Tolerances: Variations in the container's neck finish can be offset by a thicker, more compressible liner.
- Cap Type: Screw caps, snap caps, and child-resistant caps may demand different liner thicknesses for optimal performance.
- Filling Process: Hot fill, cold fill, or aseptic processes may influence liner selection. High temperatures may require thicker or specialized liners.
- Torque Application: The amount of torque applied during capping affects how much the liner compresses. Too much torque can crush a thin liner, while too little may not compress a thick liner enough for a proper seal.
- End-Use Environment: Exposure to temperature extremes, humidity, or rough handling during shipping may necessitate a thicker liner.
- Food Safety: Liners used in food packaging must comply with regulations regarding material safety and migration limits.
- Pharmaceuticals: Strict standards govern liner materials and thickness to ensure product safety and efficacy.
- Tamper Evidence: Some industries require liners that provide visible evidence of tampering, which may influence thickness selection.
Understanding the different types of cap seal liners and their typical thicknesses can help narrow down your options:
- Material: Polyethylene (PE) or Polypropylene (PP) foam
- Typical Thickness: 0.020" to 0.060" (0.5 mm to 1.5 mm)
- Applications: General-purpose sealing for water-based products, cosmetics, and light chemicals
- Material: Polystyrene foam with adhesive
- Typical Thickness: 0.020" to 0.030" (0.5 mm to 0.8 mm)
- Applications: Dry products, pharmaceuticals, and supplements

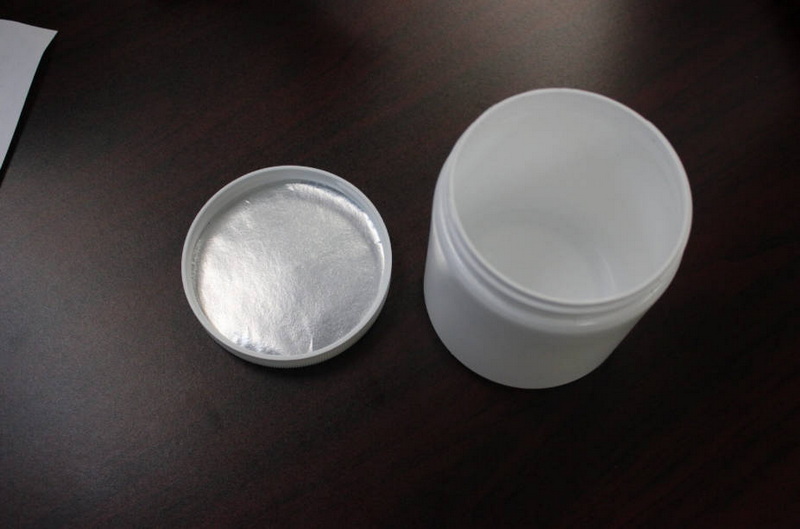

- Material: Aluminum foil with heat-sealable layer, sometimes backed with foam or pulp
- Typical Thickness: 0.010" to 0.040" (0.25 mm to 1.0 mm)
- Applications: Liquids, tamper-evident sealing, extended shelf life
- Material: Pulpboard with polyethylene coating
- Typical Thickness: 0.020" to 0.040" (0.5 mm to 1.0 mm)
- Applications: Food products, powders, and non-acidic liquids
- Material: Polytetrafluoroethylene (PTFE) laminated to foam or pulp
- Typical Thickness: 0.010" to 0.040" (0.25 mm to 1.0 mm)
- Applications: Aggressive chemicals, laboratory samples
- Assess the product's physical and chemical properties.
- Determine if the product is sensitive to moisture, oxygen, or light.
- Consider the product's viscosity and volatility.
- Inspect the container's neck finish for uniformity.
- Measure the gap between the cap and the container rim.
- Identify the cap type and its compatibility with various liner thicknesses.
- Consider the temperature and pressure conditions during filling and storage.
- Assess the torque applied during capping and its effect on liner compression.
- Account for transportation and handling stresses.
- Review industry-specific regulations for liner materials and thickness.
- Ensure compliance with food safety, pharmaceutical, or chemical packaging standards.
- Conduct sealing tests with different liner thicknesses.
- Evaluate for leaks, seal integrity, and ease of opening.
- Perform environmental and shelf-life testing as needed.
- Start with Manufacturer Recommendations: Many liner suppliers provide guidelines based on container size, cap type, and product characteristics.
- Consider Customization: For unique applications, custom-cut liners with specific thicknesses may be necessary.
- Balance Performance and Cost: Thicker liners may offer better sealing but could increase material costs and affect cap fit.
- Pilot Testing: Always test liners in real-world conditions before full-scale production.
- Document Results: Keep records of liner performance for quality assurance and regulatory compliance.
A beverage company experienced leaks in its bottled juice products. Upon inspection, the container rims had minor imperfections. Switching from a 0.020" foam liner to a 0.040" liner compensated for the irregularities, resulting in a reliable seal and reduced product loss.
A pharmaceutical manufacturer needed tamper-evident packaging for liquid medications. An induction seal liner with a thickness of 0.030" provided both a secure seal and clear tamper evidence, meeting regulatory requirements and improving consumer confidence.
A company packaging aggressive solvents found that standard liners degraded over time. Upgrading to a PTFE-faced liner with a thickness of 0.025" provided the necessary chemical resistance and maintained seal integrity throughout the product's shelf life.
- Overlooking Container Variability: Failing to account for variations in container neck finish can lead to inadequate sealing.
- Ignoring Product Compatibility: Using a liner that reacts with the product can cause contamination or liner degradation.
- Neglecting Environmental Factors: Not considering temperature fluctuations or humidity can compromise seal performance.
- Relying Solely on Cost: Choosing the cheapest liner without regard to thickness or material can result in product loss and customer complaints.
Advancements in materials science have led to the development of multi-layer liners that combine different properties, such as enhanced barrier protection and chemical resistance. Smart liners with tamper-evident features, improved resealability, and sustainability are becoming more prevalent. Manufacturers are also offering liners made from recycled or biodegradable materials, addressing environmental concerns without compromising performance.
Selecting the right thickness for your cap seal liner is a nuanced process that requires a thorough understanding of your product, packaging, and regulatory environment. The correct liner thickness ensures product safety, enhances shelf life, and maintains brand reputation. By considering the factors outlined in this guide and conducting proper testing, you can identify the ideal liner thickness for your specific application. Remember, the right liner is not just a barrier—it's a critical component of your product's success.
A liner that is too thin may fail to provide a proper seal, leading to leaks, contamination, and reduced product shelf life. Thin liners may also be unable to compensate for minor imperfections in the container rim, resulting in inconsistent sealing performance.
Start by analyzing your product's characteristics, container design, and sealing requirements. Consult with liner manufacturers for recommendations and conduct pilot tests with different thicknesses to evaluate sealing performance under real-world conditions.
Not necessarily. Different products and containers may require different liner thicknesses based on their physical and chemical properties, packaging design, and regulatory requirements. It's important to assess each product individually.
While thicker liners can provide better sealing and compensate for container imperfections, they may also be more difficult to apply and can affect cap closure. The ideal thickness balances sealing performance with ease of use and cost-effectiveness.
Common materials include polyethylene (PE) foam, polypropylene (PP) foam, polystyrene foam (for pressure-sensitive liners), aluminum foil (for induction seals), pulpboard, and PTFE. The choice of material depends on the product's compatibility and required barrier properties.
