Cap seal liners are essential components in modern packaging, ensuring product safety, freshness, and integrity across various industries. Their role extends far beyond merely sealing a container—they act as guardians against contamination, tampering, and leakage. Understanding cap seal liners, including their functions, materials, and types, is crucial for manufacturers, brand owners, and consumers alike. This comprehensive article delves deep into the world of cap seal liners, exploring their significance, the science behind their construction, and how to select the right liner for your specific needs.

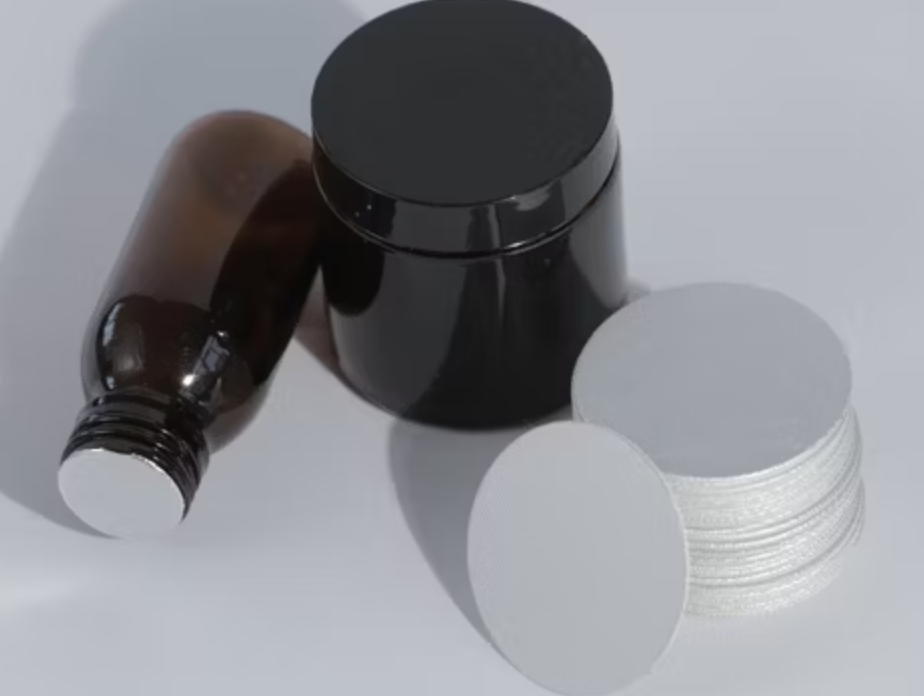

Cap seal liners are thin layers of material inserted inside the caps or closures of bottles, jars, and containers. Their primary function is to form a secure seal between the cap and the container, providing multiple benefits:
- Protection from Leakage: Liners prevent liquids, powders, and other contents from leaking out during storage and transportation.
- Preservation of Freshness: By creating an airtight seal, liners help maintain the freshness and quality of the product.
- Barrier Against Contaminants: Liners act as a barrier to moisture, oxygen, and other external contaminants.
- Tamper Evidence: Many liners are designed to provide visible evidence if a container has been opened or tampered with.
- Extended Shelf Life: By reducing exposure to air and contaminants, liners help extend the shelf life of products.
From pharmaceuticals to food and beverages, cosmetics to chemicals, cap seal liners are indispensable for maintaining product integrity and consumer trust.
Cap seal liners serve a variety of critical functions in packaging:
One of the most fundamental roles of a cap seal liner is to prevent leakage. During transportation and handling, containers are subjected to movement, pressure changes, and temperature fluctuations. A properly selected liner creates a tight seal, ensuring the product remains inside the container, reducing waste and mess, and protecting surrounding items.
Cap seal liners help preserve the quality and freshness of the contents. For perishable goods such as food, beverages, and pharmaceuticals, exposure to air or moisture can lead to spoilage, degradation, or loss of potency. Liners with barrier properties prevent the ingress of oxygen and moisture, maintaining the original quality of the product.
Tamper-evident liners are designed to provide clear, visible signs if a container has been opened. This is especially important for products where safety and authenticity are paramount, such as medicines and high-value consumables. Tamper-evident features may include breakable seals, pull tabs, or printed warnings that are destroyed upon opening.
Cap seal liners act as a barrier against dust, microbes, and other contaminants. This is vital for products that require a high level of hygiene, such as pharmaceuticals, baby food, and cosmetics. By preventing contamination, liners help ensure consumer safety and regulatory compliance.
By minimizing exposure to environmental factors, cap seal liners help extend the shelf life of products. This is particularly important for items sensitive to oxidation, moisture, or light. The right liner can significantly delay spoilage, reduce returns, and enhance customer satisfaction.
Cap seal liners are made from a variety of materials, each offering unique properties suited to different applications. The choice of material depends on factors such as the nature of the product, container type, required barrier properties, and regulatory requirements.
Foam liners are made from polyethylene (PE) or polypropylene (PP) foam. They are soft, compressible, and provide a good seal for dry products or non-volatile liquids. Foam liners are cost-effective and suitable for general-purpose applications, but they offer limited barrier protection against moisture and gases.
Pulp and paper liners are made from cellulose fibers, often combined with other materials for added strength or barrier properties. They are commonly used for dry products and offer good chemical resistance. Pulp liners are biodegradable and environmentally friendly, making them popular for sustainable packaging.
Foil liners incorporate a layer of aluminum foil, providing excellent barrier properties against moisture, oxygen, and light. They are often used for products that require a high level of protection, such as pharmaceuticals, food, and chemicals. Foil liners can be combined with other materials, such as pulp or foam, to enhance sealing performance.
Induction seal liners are multi-layered structures that include a foil layer, a polymer coating, and sometimes a backing material. They are applied to the container neck and sealed using electromagnetic induction, creating a hermetic seal. Induction liners are widely used for tamper evidence and leak prevention, especially in high-value or sensitive products.
Plastisol liners are made from polyvinyl chloride (PVC) plastisol, a liquid resin that cures into a soft, flexible gasket. They are commonly used in metal closures for glass jars, such as those used for preserves and sauces. Plastisol liners provide an excellent seal and are suitable for hot-fill processes.
Specialty liners are designed for specific applications, such as child-resistant packaging, vented liners for pressure-sensitive products, or liners with custom printing for branding and instructions. These liners may combine several materials and technologies to meet unique requirements.
Cap seal liners come in various types, each tailored to specific packaging needs. Understanding the different types helps in selecting the most appropriate liner for a given application.
Pressure sensitive liners are adhesive-backed liners that adhere to the container rim when the cap is applied. They require no heat or induction equipment, making them easy to use. These liners are suitable for dry products and provide a tamper-evident seal, but they are not recommended for liquids or oily substances.
Induction seal liners, as discussed earlier, are sealed using electromagnetic induction. They provide a strong, tamper-evident, and leak-proof seal. Induction liners are ideal for products that require maximum protection and are commonly found in food, pharmaceuticals, and agrochemicals.
Two-piece liners consist of a sealing layer (often foil) and a backing material (such as pulp or foam). Upon application of heat or induction, the sealing layer bonds to the container, while the backing remains inside the cap. This design provides both a hermetic seal and a resealable cushion for the cap.
One-piece liners are single-layered liners that adhere directly to the container rim. They are simpler in construction and suitable for products where resealability is not required. One-piece liners are often used for cost-sensitive applications.
Vented liners are designed to allow the controlled release of gases or vapors from the container, preventing pressure build-up and potential leaks. They are essential for packaging products that emit gases, such as certain chemicals, agro-products, or carbonated beverages.
Peelable liners are engineered to be easily removed by the consumer, often featuring a pull tab or scored edge. They provide tamper evidence and are user-friendly, making them suitable for food, pharmaceuticals, and personal care products.
Selecting the right cap seal liner is a critical decision that impacts product safety, shelf life, and customer experience. Several factors should be considered:
The liner material must be compatible with the product to prevent chemical reactions, absorption, or degradation. For example, aggressive chemicals may require specialized liners with high chemical resistance.
The dimensions, shape, and material of the container and cap influence the choice of liner. Some liners are better suited for glass, while others work best with plastic or metal containers.
Consider the level of protection needed against moisture, oxygen, light, and other external factors. Products with high sensitivity require liners with superior barrier properties.
Certain industries, such as food and pharmaceuticals, require liners that comply with specific regulations regarding safety, hygiene, and materials.
For products where safety and authenticity are paramount, choose liners with tamper-evident features.
User convenience is important, especially for consumer products. Peelable or easy-open liners enhance the user experience.
With growing emphasis on sustainability, consider liners made from recyclable, biodegradable, or compostable materials.
The production of cap seal liners involves several steps, each designed to ensure quality, consistency, and performance.
Manufacturers select raw materials based on the required properties of the liner. Materials are tested for compatibility, barrier performance, and regulatory compliance.
Many liners are multi-layered, combining different materials to achieve the desired balance of sealing, barrier, and mechanical properties. Layers may include foam, pulp, foil, and adhesives.
Large sheets or rolls of liner material are cut into discs or shapes that fit inside specific cap sizes. Precision cutting ensures a snug fit and optimal sealing performance.
Liners can be printed with branding, instructions, or tamper-evident messages. Customization enhances brand recognition and provides important information to consumers.
Rigorous quality control measures are implemented to ensure liners meet performance standards. Tests may include leak testing, compression testing, and visual inspection.
Cap seal liners are used in a wide range of industries, each with unique requirements:
Liners preserve freshness, prevent leaks, and provide tamper evidence for sauces, condiments, beverages, and more.
High-barrier and tamper-evident liners are critical for medicines, supplements, and medical devices.
Liners protect creams, lotions, and other products from contamination and leakage, enhancing shelf appeal.
Specialty liners provide chemical resistance and venting for hazardous or reactive substances.
Liners prevent spills and maintain product integrity for cleaning agents, detergents, and other household items.
The cap seal liner industry is constantly evolving, driven by technological advancements, regulatory changes, and consumer preferences.
There is a growing trend toward eco-friendly liners made from biodegradable, compostable, or recyclable materials. Brands are seeking sustainable solutions to reduce environmental impact and appeal to environmentally conscious consumers.
Innovations such as QR codes, RFID tags, and tamper-evident technologies are being integrated into liners to enhance traceability, security, and consumer engagement.
Advancements in material science are leading to liners with improved barrier properties, extending shelf life and expanding the range of products that can be safely packaged.
Brands are leveraging custom-printed liners to reinforce brand identity, communicate with consumers, and provide usage instructions.
Despite their benefits, selecting the right cap seal liner can present challenges:
- Product-Liner Incompatibility: Testing and consultation with liner manufacturers can help identify suitable materials.
- Regulatory Hurdles: Staying informed about industry regulations and working with compliant suppliers ensures adherence to standards.
- Cost Considerations: Balancing performance and cost is key; not all products require the highest barrier liners.
- Sustainability Goals: Collaborating with suppliers to source sustainable options can help meet environmental objectives.
Cap seal liners are vital components in modern packaging, providing protection, safety, and convenience across a multitude of industries. Their functions extend from leak prevention and product preservation to tamper evidence and contamination control. With a wide array of materials and types available, selecting the right liner requires careful consideration of product compatibility, barrier needs, regulatory requirements, and sustainability goals. As packaging technology evolves, cap seal liners will continue to play a crucial role in ensuring product integrity and enhancing consumer trust.
The main purpose of a cap seal liner is to create a secure seal between the container and the cap, preventing leakage, preserving product freshness, providing tamper evidence, and protecting against contamination.
Choosing the right liner depends on factors such as the type of product, container material, required barrier properties, regulatory requirements, and whether tamper evidence or resealability is needed. Consulting with liner manufacturers and conducting compatibility tests are recommended.
Many liners are now made from recyclable, biodegradable, or compostable materials. However, the recyclability depends on the liner's composition and local recycling capabilities. Sustainable options are increasingly available to meet environmental goals.
Induction seal liners require electromagnetic induction to create a hermetic, tamper-evident seal, making them ideal for liquids and sensitive products. Pressure sensitive liners use adhesive to stick to the container rim and are best suited for dry products and short-term sealing needs.
No, not all liners are suitable for every product. The choice of liner should be based on the product's chemical properties, packaging material, and specific requirements such as barrier protection, tamper evidence, and regulatory compliance.
