In the world of packaging, the integrity and safety of products are paramount. Cap seal liners play a critical role in ensuring that containers—whether made of PET (polyethylene terephthalate), PE (polyethylene), or glass—remain airtight, leak-proof, and tamper-evident. As consumer demands for safety, freshness, and sustainability grow, manufacturers are faced with the challenge of selecting the most suitable cap seal liner for their products. This comprehensive guide explores the different types of cap seal liners, their compatibility with PET, PE, and glass containers, and the factors to consider when making a choice. By the end of this article, you will have a clear understanding of how to select the right liner for your packaging needs.
Cap seal liners are materials inserted inside the caps of containers to provide an additional layer of protection. Their primary functions include:
- Preventing leaks and spills
- Maintaining product freshness
- Providing tamper evidence
- Enhancing shelf life
- Acting as a barrier to moisture, oxygen, and other contaminants
Cap seal liners are used in a wide range of industries, including food and beverages, pharmaceuticals, cosmetics, chemicals, and household products. The choice of liner depends on the container material, the nature of the product, and the desired properties of the seal.
There are several types of cap seal liners, each with distinct characteristics and applications. The most common types include:

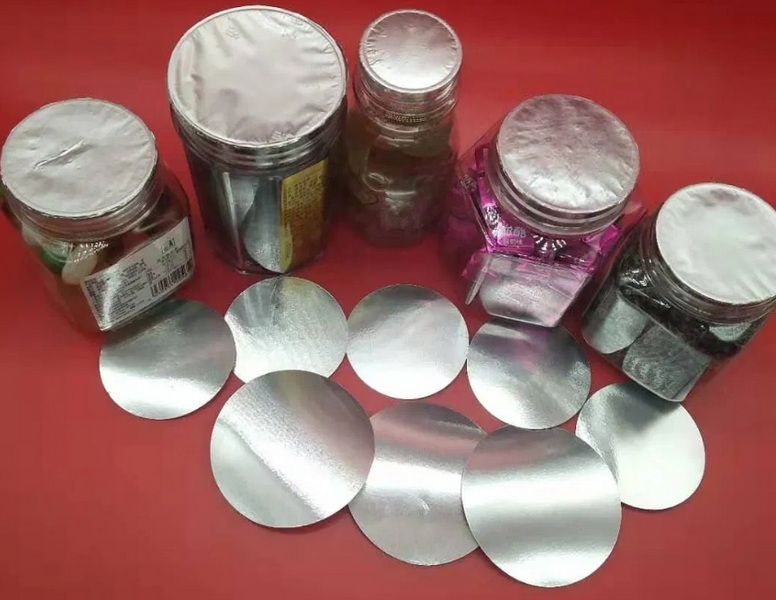

Induction seal liners use electromagnetic induction to bond a foil layer to the container's rim. When the cap is applied and passed under an induction sealing machine, the foil heats up and adheres to the container, creating a hermetic seal.
Advantages:
- Provides tamper evidence
- Excellent leak protection
- Suitable for both liquid and dry products
Disadvantages:
- Requires specialized sealing equipment
- Not reusable once removed
Pressure sensitive liners adhere to the container's rim when the cap is screwed on. They are made from a foam or paper material coated with a pressure-sensitive adhesive.
Advantages:
- Easy to apply
- No special equipment needed
- Suitable for dry products
Disadvantages:
- Not suitable for liquids
- Limited tamper evidence
Foam liners are made from polyethylene or other foam materials. They provide a cushion between the cap and the container, ensuring a tight seal.
Advantages:
- Cost-effective
- Good for dry products and powders
- Reusable
Disadvantages:
- Limited barrier properties
- Not tamper-evident
Heat seal liners require the application of heat to bond the liner to the container. They are commonly used for products that require a strong, tamper-evident seal.
Advantages:
- Strong seal
- Good for liquids and aggressive chemicals
Disadvantages:
- Requires heat-sealing equipment
- Not reusable
Wad liners are simple discs of material (often cardboard or foam) placed inside the cap. They provide a basic seal and are commonly used for dry products.
Advantages:
- Simple and inexpensive
- Suitable for non-sensitive products
Disadvantages:
- Limited sealing capability
- Not suitable for liquids
The choice of cap seal liner is influenced by the type of container used. Each material—PET, PE, and glass—has unique properties that affect liner compatibility.
PET is a lightweight, durable plastic commonly used for beverage bottles, food jars, and personal care products. Its smooth surface and chemical resistance make it ideal for a variety of applications.
Considerations for Cap Seal Liners:
- Induction seal liners are widely used with PET due to their strong adhesion and tamper-evident properties.
- Foam and pressure sensitive liners are suitable for dry products.
- Compatibility with the product's chemical composition is essential to prevent liner degradation.
PE containers, made from polyethylene, are known for their flexibility and moisture resistance. They are used for packaging liquids, creams, and chemicals.
Considerations for Cap Seal Liners:
- Induction and heat seal liners work well with PE, especially for liquid products.
- Foam liners are suitable for non-aggressive, dry products.
- The surface energy of PE can affect liner adhesion, so proper selection is crucial.
Glass is inert, non-porous, and offers excellent barrier properties. It is the preferred choice for high-end food, beverages, and pharmaceuticals.
Considerations for Cap Seal Liners:
- Induction seal liners with a suitable adhesive layer are commonly used.
- Foam and wad liners can be used for dry or non-sensitive products.
- The rigidity of glass ensures a consistent seal, but care must be taken to avoid chipping during capping.
Selecting the right cap seal liner involves evaluating several factors:
The chemical composition of the product can interact with the liner material, affecting its performance. For example, acidic or oily products may degrade certain liners, leading to leaks or contamination.
As discussed, the liner must be compatible with the container's material. Adhesion, flexibility, and barrier properties should be considered.
Some liners require specialized equipment (e.g., induction or heat sealers), while others can be applied manually. The choice depends on production scale and available resources.
For food, pharmaceutical, and cosmetic products, liners must comply with relevant safety and quality standards. Always verify that the liner material is approved for contact with the intended product.
Cost considerations include not only the price of the liner but also the equipment and labor required for application. Sustainability is increasingly important, with many companies seeking recyclable or biodegradable liner options.
Advantages:
- Lightweight and shatter-resistant
- Compatible with a wide range of liners
- Good for both dry and liquid products
Disadvantages:
- May absorb flavors or odors over time
- Potential for liner degradation with aggressive products
Advantages:
- Flexible and impact-resistant
- Excellent moisture barrier
- Suitable for a variety of liner types
Disadvantages:
- Lower surface energy can affect liner adhesion
- Not as transparent as PET or glass
Advantages:
- Inert and non-reactive
- Superior barrier properties
- High-end appearance
Disadvantages:
- Heavier and more fragile
- Higher cost and shipping expenses
The packaging industry is constantly evolving, with new materials and technologies emerging to meet changing consumer and regulatory demands.
Manufacturers are developing liners made from recyclable, compostable, or biodegradable materials. These liners help reduce environmental impact and appeal to eco-conscious consumers.
New liner materials offer enhanced protection against oxygen, moisture, and UV light, extending product shelf life and maintaining quality.
Innovative tamper-evident designs, such as color-changing indicators or breakable seals, provide added security and consumer confidence.
Liners can be customized with branding, instructions, or promotional information, adding value and differentiation to products.
To ensure optimal performance, follow these best practices:
- Test liner compatibility with both the product and container material before full-scale production.
- Use proper application equipment and follow manufacturer guidelines for sealing.
- Store liners in a clean, dry environment to prevent contamination or degradation.
- Train staff on correct liner handling and application procedures.
- Regularly inspect sealed containers for leaks, seal integrity, and tamper evidence.
Leakage can result from improper liner selection, incorrect application, or container defects. Conduct thorough testing and quality control to identify and address issues early.
Exposure to aggressive chemicals or extreme temperatures can degrade liners. Choose materials specifically designed for your product's requirements.
Variations in container dimensions or capping torque can lead to inconsistent seals. Use precision equipment and monitor production closely.
Choosing the right cap seal liner for PET, PE, and glass containers is a critical decision that impacts product safety, quality, and consumer satisfaction. By understanding the properties of different liners and container materials, and by considering factors such as product compatibility, regulatory compliance, and sustainability, manufacturers can ensure optimal performance and protection. As packaging technology continues to advance, staying informed about the latest innovations will help you make the best choices for your products and your customers.
Induction seal liners use electromagnetic induction to bond a foil layer to the container's rim, creating a tamper-evident, hermetic seal. Pressure sensitive liners, on the other hand, rely on adhesive properties and are pressed onto the container when the cap is applied. Induction liners are better for liquids and tamper evidence, while pressure sensitive liners are suitable for dry products and do not require special equipment.
Not always. While some liners are versatile, compatibility depends on the liner material, adhesive properties, and the nature of the container. For example, induction seal liners may require different adhesive formulations for PET, PE, and glass to ensure proper bonding and seal integrity.
Tamper-evident liners are recommended for products where safety and authenticity are critical, such as food, beverages, pharmaceuticals, and cosmetics. If regulatory standards or consumer expectations demand visible proof of tampering, a tamper-evident liner is essential.
Yes, the industry is moving towards sustainable solutions, including liners made from recyclable, compostable, or biodegradable materials. When choosing an eco-friendly liner, ensure it is compatible with your product and container, and meets regulatory requirements.
Frequent liner failures can result from improper liner selection, incorrect application, or container defects. To resolve these issues, conduct compatibility tests, ensure proper sealing procedures, and inspect containers for defects. Consulting with liner manufacturers for technical support can also help address persistent problems.
