Induction sealing has revolutionized the packaging industry, particularly for glass bottles. This method not only enhances product safety and integrity but also plays a crucial role in extending shelf life and ensuring consumer trust. In this article, we will delve into the significance of induction sealing for glass bottle packaging, exploring its benefits, applications, and the technology behind it.
Induction sealing is a non-contact method that uses electromagnetic fields to generate heat in a foil liner placed inside a cap. When the cap is applied to a container, the induction sealing machine creates an electromagnetic field that heats the foil liner, melting the adhesive and bonding it to the container's neck. This process creates a hermetic seal that prevents leakage and contamination.

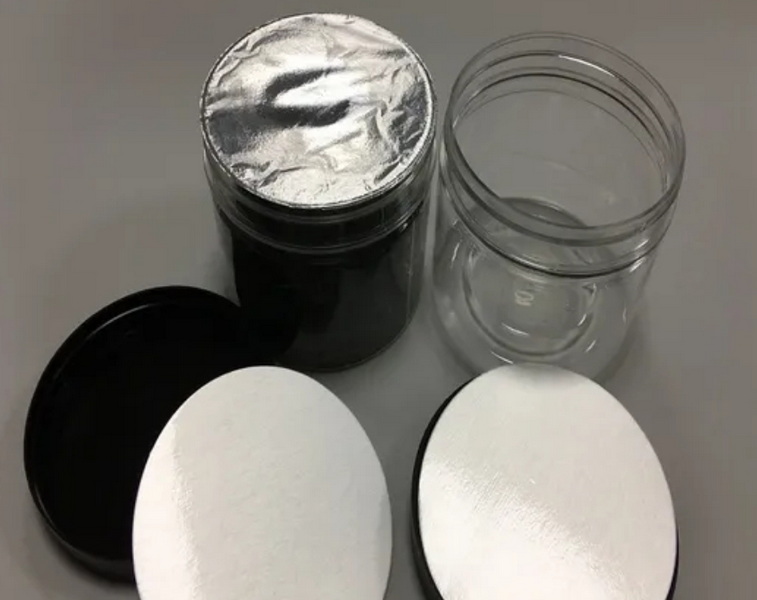

An induction seal typically consists of several layers:
- Aluminum Foil Layer: This layer reacts to the electromagnetic field, generating heat.
- Wax or Polymer Layer: This layer melts during sealing, forming a bond with the container.
- Backing Layer: Provides structural support and ensures proper sealing.
1. Cap Application: The cap with an induction liner is placed on the filled glass bottle.
2. Induction Heating: The bottle passes under an induction sealer, where an electromagnetic field heats the aluminum foil.
3. Bonding: The heat melts the adhesive layer, allowing it to bond with the glass neck.
4. Cooling: As the bottle cools, a strong seal forms.
Induction seals create a hermetic seal that effectively prevents leaks and spills. This is especially important for liquid products such as beverages, oils, and pharmaceuticals. A secure seal ensures that products remain intact during storage and transportation, reducing the risk of costly leaks.
The airtight seal formed by induction sealing prevents oxygen and moisture from entering the container. This significantly extends the shelf life of products by preserving freshness and preventing spoilage. For example, food items sealed with induction liners can remain fresh for much longer than those sealed with traditional methods.
Induction sealing provides a tamper-evident feature that assures consumers of product integrity. The foil must be broken to access the contents, giving consumers confidence that the product has not been tampered with. This is particularly vital in industries like pharmaceuticals and food where safety is paramount.
The non-contact nature of induction sealing minimizes contamination risks during packaging. Since there is no direct contact between the sealing machine and the container, it results in cleaner seals compared to traditional methods that may involve physical contact.
Induction sealing can lead to cost savings by reducing product spoilage and enhancing shelf life. Additionally, it allows for high-speed production without compromising quality, making it an efficient choice for manufacturers.

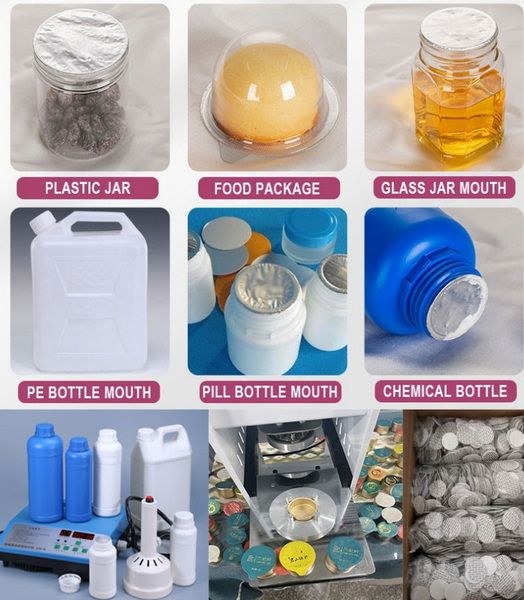

Induction sealing is widely used across various industries that utilize glass bottles:
In this sector, maintaining product freshness is crucial:
- Juices: Freshly squeezed juices benefit from airtight seals that prevent oxidation.
- Sauces: Products like ketchup or salad dressings remain uncontaminated until opened.
Pharmaceuticals require stringent safety measures:
- Medicines: Many over-the-counter medications use induction seals to ensure consumer safety.
- Vitamins & Supplements: These often contain sensitive ingredients that need protection from environmental factors.
Cosmetics are another area where product integrity is critical:
- Lotions & Creams: These products benefit from airtight seals that protect active ingredients from degradation.
- Perfumes: Induction seals help maintain fragrance integrity over time.
In industrial applications:
- Cleaning Supplies: Many household cleaners use induction seals to prevent leaks during transport.
- Industrial Chemicals: Proper sealing prevents reactions that could occur if contaminants enter the container.
To implement this process effectively, specific equipment is required:
- Induction Sealer Machine: This machine generates electromagnetic waves that induce heat in the aluminum foil liner.
- Conveyor System: Often integrated into production lines for efficiency.
- Control Panel: Allows operators to adjust settings based on container size and material.
An induction sealer consists of two main components:
1. Power Supply: Generates electromagnetic energy.
2. Sealing Head: Contains coils that create an electromagnetic field when energized.
When a glass bottle fitted with an induction-lined cap passes through this field, heat is generated in the foil liner, melting it to form a bond with the bottle's neck.
To achieve optimal results when using induction seals on glass bottles, consider these best practices:
Ensure your induction sealer is correctly calibrated for your specific application:
- Adjust power levels based on bottle size and material.
- Maintain consistent gap heights between the sealing head and bottle neck (ideally around 1/8 inch).
Choose materials compatible with induction sealing:
- Ensure your glass bottles are treated appropriately to accept induction seals.
- Select caps designed specifically for use with induction liners.
Perform regular maintenance on your equipment to ensure consistent performance:
- Clean sealing heads and conveyor systems regularly to prevent contamination.
- Inspect components for wear or damage.
Even with careful setup, issues can arise during induction sealing:
If seals are not forming completely:
- Check alignment on conveyor belts.
- Ensure power levels are set correctly; increase if necessary.
Burnt liners can occur due to excessive heat:
- Reduce power levels or increase conveyor speed to minimize exposure time in the induction field.
Leaking containers indicate poor seals:
- Verify caps are applied with adequate torque.
- Ensure liners are compatible with both caps and containers.
As sustainability becomes increasingly important in manufacturing processes, it's essential to consider how induction sealing fits into eco-friendly practices:
Many components of induction liners can be recycled; however, it's crucial for manufacturers to provide clear recycling guidelines to consumers.
By extending shelf life and reducing spoilage rates through effective sealing methods like induction sealing, companies can contribute positively toward waste reduction efforts.
Induction sealing plays a vital role in enhancing glass bottle packaging by providing airtight seals that preserve product integrity and extend shelf life. Its benefits—ranging from leak prevention and tamper evidence to improved hygiene—make it an essential technology across various industries. By adopting best practices in induction sealing processes, manufacturers can ensure their products reach consumers safely while maintaining quality.
An induction seal glass refers to a hermetic seal created on glass containers using an aluminum foil liner within a cap that bonds when exposed to electromagnetic fields during sealing.
Induction sealing creates an airtight environment that prevents oxygen and moisture from entering the container, significantly extending product freshness and shelf life.
Induction seals are beneficial for various products including food items (juices, sauces), pharmaceuticals (medications), cosmetics (lotions), and chemicals (cleaners).
Most types of glass containers can be sealed using induction methods; however, compatibility should be verified based on specific materials used in both caps and liners.
Regular cleaning of components such as the sealing head and conveyor system is essential along with routine inspections for wear on seals and liners.
