In the packaging industry, choosing the right sealing method is crucial for preserving product integrity, extending shelf life, and ensuring tamper evidence. Two prominent sealing techniques are induction seal vs heat seal. While both methods aim to create a secure closure, they operate on different principles and offer distinct advantages. This article explores the differences between induction seal vs heat seal, their mechanisms, applications, and factors to consider when selecting the appropriate sealing method for your specific needs.

Introduction to Sealing Methods

What is an Induction Seal?

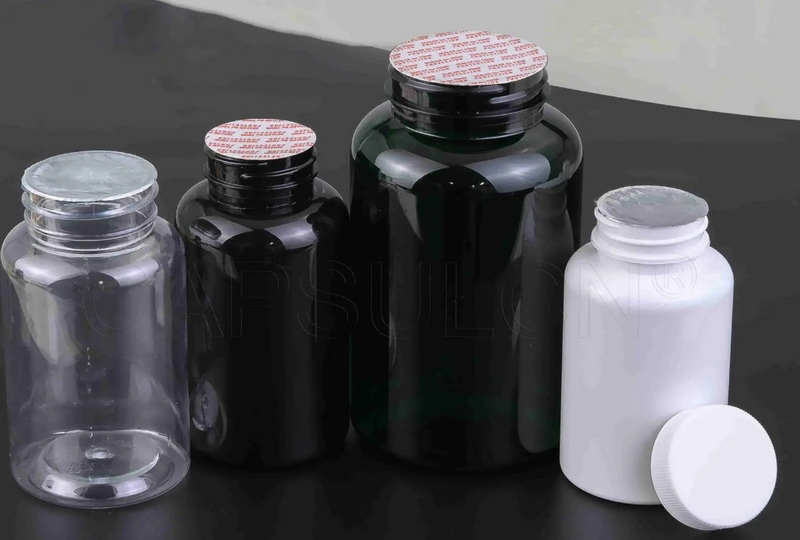

An induction seal is a type of hermetic seal created by a non-contact heating process. This method uses electromagnetic induction to bond a multi-layered liner to the lip of a container, typically made of plastic or glass[1][7]. Induction sealing is widely used for containers that require a high degree of protection against moisture, oxygen, and tampering[3].

How Induction Sealing Works

1. Liner Placement: A specialized liner, consisting of layers of paperboard, wax, aluminum foil, and a polymer film, is placed inside the cap of the container[3][7].

2. Cap Application: The cap is screwed onto the filled container, ensuring that the liner comes into contact with the container's rim[5][7]. Proper torque is crucial[5].

3. Induction Heating: The container passes under an induction sealing head, which generates an electromagnetic field[3].

4. Foil Heating: The electromagnetic field induces eddy currents in the aluminum foil layer, causing it to heat up rapidly[3][5].

5. Sealing: The heat melts the wax layer, releasing the foil from the cap, and melts the polymer film, bonding it to the container's rim to create a hermetic seal[1][3].

6. Cooling: The materials cool and solidify, forming a secure seal[1].

What is a Heat Seal?

A heat seal is a method of joining two or more thermoplastic materials by applying heat and pressure[2]. This process is commonly used to seal flexible packaging, such as bags and pouches, made of plastic films, foils, or laminates[1][2]. Heat sealing is a direct contact process that creates a strong, airtight, and watertight closure[2][6].

How Heat Sealing Works

1. Material Preparation: The materials to be sealed, typically thermoplastic films, are brought together[2][6].

2. Heat Application: A heated element, such as a seal bar or wire, applies direct heat to the materials[2].

3. Pressure Application: Pressure is applied to the heated area, causing the materials to melt and fuse together[2].

4. Cooling: The sealed area is allowed to cool under pressure, forming a permanent bond[4][6].

Induction Seal vs Heat Seal: Key Differences

While both induction seal vs heat seal methods aim to create a secure closure, they differ significantly in their working principles, applications, and characteristics[3].

1. Working Principle

- Induction Seal: Uses electromagnetic induction to heat a foil liner, which then bonds to the container rim[1][3]. This is a non-contact process[1][3].

- Heat Seal: Applies direct heat and pressure to melt and fuse thermoplastic materials together[2].

2. Materials

- Induction Seal: Best suited for containers with a cap and liner that includes a conductive material, such as aluminum foil[1][3].

- Heat Seal: Works with a variety of thermoplastic materials, including plastic films, foils, and laminates[1][2][6].

3. Applications

- Induction Seal: Commonly used for sealing bottles and jars in the food, pharmaceutical, and cosmetic industries, particularly for products requiring a high degree of protection and tamper evidence[3][5].

- Heat Seal: Widely used for sealing bags, pouches, and blister packs in the food, medical, and consumer goods industries[2][8].

4. Seal Type

- Induction Seal: Creates a hermetic, airtight, and tamper-evident seal[3][5].

- Heat Seal: Forms an airtight seal, but is typically less tamper-evident than an induction seal[3].

5. Equipment

- Induction Seal: Requires specialized induction sealing machinery, which can have higher upfront costs[3].

- Heat Seal: Can be achieved with simpler and more affordable machinery, making it suitable for small to medium-sized operations[3].

6. Speed and Precision

- Induction Seal: Slower process due to the precision needed to ensure a consistent, strong seal[3].

- Heat Seal: Faster process, especially with simpler machinery, but may require preheating[3][8].

7. Cost

- Induction Seal: Higher upfront costs, especially for specialized machinery[3].

- Heat Seal: Lower upfront costs and more affordable for small to medium operations[3].

Common Methods to Create Heat Seals

Heat seals are created using one of these methods:

- Seal Bar Sealing: Uses a heated bar to create a localized seal. Suitable for small or large-scale production[2].

- Impulse Sealing: Applies a short burst of high-voltage electricity to heat seal bars quickly. Suitable for smaller-scale production and thinner materials[2].

- Hot Wire Sealing: Uses a heated wire to cut and seal the material simultaneously, providing a clean, precise seal[2].

- Hot Air Sealing: Uses a stream of hot air to melt and fuse the edges of the bag. Best for irregular shapes and thicker materials[2].

- Induction Sealing: A non-contact method used for containers with caps, employing electromagnetic induction to heat a metalized liner inside the container's cap[2].

Factors to Consider When Choosing a Sealing Method

Selecting the appropriate sealing method depends on several factors:

- Product Type: Consider the sensitivity of the product to oxygen, moisture, and other environmental factors[3][5].

- Container Material: Choose a method compatible with the container material (plastic, glass, aluminum, etc.)[3].

- Production Volume: Consider the speed and efficiency of the sealing process for your production needs[3].

- Budget: Evaluate the upfront and ongoing costs of equipment and materials[3].

- Tamper Evidence: Determine the level of tamper resistance required for your product[3].

Conclusion

The choice between induction seal vs heat seal depends on the specific requirements of your product and packaging. Induction sealing offers superior protection, tamper evidence, and is best suited for rigid containers requiring a hermetic seal[3][5]. Heat sealing provides a cost-effective and versatile solution for flexible packaging, such as bags and pouches[2]. By understanding the differences between these two methods, you can make an informed decision that optimizes product integrity, extends shelf life, and enhances consumer confidence.

FAQ

1. What is the main difference between induction sealing and heat sealing?

Induction sealing uses electromagnetic induction to heat and bond a liner to a container, while heat sealing uses direct heat and pressure to fuse materials together[1][2].

2. Which materials are best suited for induction sealing?

Induction sealing works best with containers that have a cap and a liner containing a conductive material like aluminum foil[3].

3. What are the benefits of using induction seals?

Benefits of using induction seals include creating a hermetic seal, providing tamper evidence, extending shelf life, and preventing leaks[3][5].

4. What are the common applications of heat sealing?

Heat sealing is commonly used for sealing bags, pouches, and blister packs in various industries, including food, medical, and consumer goods[2].

5. Which sealing method is more cost-effective?

Heat sealing is generally more cost-effective, especially for small to medium-sized operations, due to the simpler and more affordable machinery required[3].
