Induction seals are a vital component in modern packaging, providing a hermetic seal on containers to protect products from contamination, extend shelf life, and offer tamper evidence. This technology is widely used across diverse industries, including food and beverage, pharmaceuticals, health and beauty, and more. In this comprehensive article, we will explore what induction seals are, how they work, their various applications, and the benefits they offer.

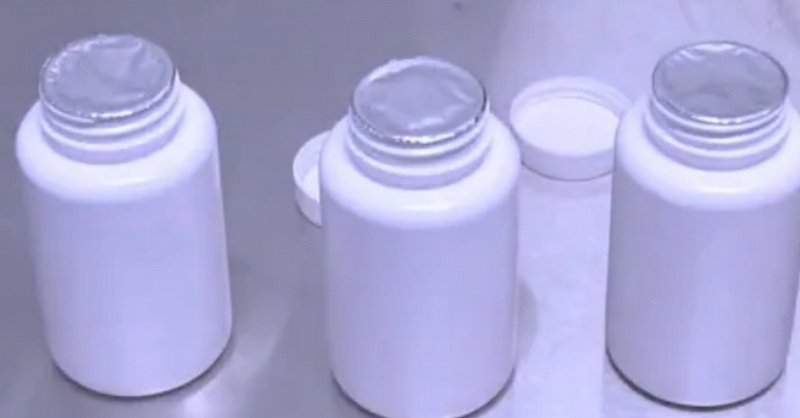

Induction sealing is a non-contact heating process that welds a foil laminate to the lip of plastic and glass containers[4]. This creates a hermetic seal, ensuring the package is airtight[7][13]. The process occurs after filling and capping, where containers pass under an induction sealer to create a secure closure[1].
The induction sealing system comprises two main components: a power supply and a sealing head[2]. The power supply is an electrical generator that operates at medium to high frequencies[2]. The sealing head, typically housed in a plastic case, contains an inductive coil[2]. When energized, the sealing head produces an electromagnetic current, known as an eddy current[2].
The induction sealing process involves several key steps[5]:
1. Cap Application: The container is filled and capped with a closure containing an induction seal liner[7][10]. Proper torque is crucial to ensure the induction seal is in contact with the container lip[4][7].
2. Electromagnetic Field Generation: As the container moves under the induction sealing coil, the machine generates an electromagnetic field[4][10].
3. Foil Heating: The electromagnetic field induces eddy currents in the aluminum foil liner of the cap, causing it to heat up rapidly[4][11]. This process is known as induction heating[11].
4. Sealing: The heat melts the polymer coating on the inner-seal[1][2][8]. The heat, combined with the pressure from the cap, bonds the inner-seal to the lip of the container, creating a hermetic seal[1][2][4]. The cardboard backing of the liner separates and remains inside the cap[4].
5. Cooling: As the container exits the induction sealer and the heat cools, the foil firmly adheres to the container opening, forming a strong and reliable seal[4][11].
The multi-layered foil liner, spot-glued to the inside of the cap, typically includes[4]:
- A top layer of paperboard that provides a cushion and adheres to the cap[4].
- A layer of wax that melts when heated, releasing the foil seal[4].
- A layer of aluminum foil that heats up due to the electromagnetic field[4].
- A polymer layer (heat seal layer) that melts and adheres to the container's opening, creating the hermetic seal[4][8][10][11].
Induction sealing offers numerous benefits across various industries[4]:
1. Hermetic Seal: It creates an airtight seal that prevents contaminants from entering the container[7][13].
2. Extended Shelf Life: By preventing oxygen and moisture from entering the package, it reduces the risk of spoilage, oxidation, and microbial growth, ensuring products retain their flavor, nutritional value, and overall quality for a longer period[9][4][10].
3. Tamper Evidence: Provides visible evidence of any tampering attempts, assuring consumers of product integrity[9][4].
4. Leak Prevention: Prevents leaks and spills, maintaining product quality and reducing waste[4].
5. Regulatory Compliance: Tamper-evident seals help meet regulatory requirements and assure consumers of product integrity[9].
6. Preserves Freshness: Completely seals in freshness, making it ideal for food and beverage items[3].
7. Child-Resistant Packaging: Facilitates the use of a wide range of cap types, including child-resistant caps, to prevent accidental ingestion by children[9].
Induction sealing is utilized across a wide array of industries due to its versatility and effectiveness[3]:
- Honey Products: Maintains freshness and prevents leaks[3].
- BBQ and Other Sauces: Provides a tamper-evident seal while completely sealing in freshness[3].
- Fruit Cups: Ensures product integrity and extends shelf life[3].
- Cold Pressed Coffee & Juices: Seals in freshness and prevents spoilage[3].
- Everyday Pain Medicines: Protects medications from moisture and air[3].
- Vitamins: Ensures product potency and extends shelf life[3].
- Other Medications: Provides a secure and authentic seal throughout distribution[3].
Induction sealing is also beneficial for products such as[6]:
- Animal Care and Pet Products: Pet shampoos, conditioners, and medications.
- Sporting Goods: Doe urine, fish attractants, and lubricants.
- Paints, Inks, and Dyes: Prevents drying and spills.
- Home Remodeling Projects: Adhesives and sealants.
The size and shape of the container determine the kind of sealing head used in the heat induction process[7].
- Flat Sealing Head: Preferred for larger caps (53mm and larger), producing a widely dispersed magnetic field[7]. Requires the container to be centered under the sealing head[7].
- Tunnel Sealing Head: Used for smaller caps, directing the electromagnetic current in a concentrated area on the container neck[7]. Suitable for thicker seals, like those on child-proof containers[7]. Can only accommodate a limited range of container sizes[7].
- All-in-One Sealing Head: Accommodates caps from 28mm to 120mm in diameter, making it perfect for industries with a range of cap sizes[7].
Selecting the appropriate induction sealing system involves understanding the capabilities and limitations of various sealing options[9][12]. Manufacturers can make informed decisions by considering factors such as[9]:
- Container Material (plastic or glass)[4]
- Cap Size and Shape[7]
- Production Volume
- Specific Product Requirements (e.g., tamper evidence, child resistance)
Induction seals are an indispensable technology in modern packaging, offering a multitude of benefits ranging from enhanced product safety and extended shelf life to tamper evidence and regulatory compliance[4][9]. By understanding how induction sealing works and its diverse applications, manufacturers can optimize their sealing processes to ensure maximum efficiency and effectiveness[12]. The continued advancements in seal and cap types promise even more customized and sustainable solutions in the future[12].
An induction seal is a liner made of a foil laminate that is welded to the lip of a container through a non-contact heating process, creating a hermetic seal[1][2][4].
Induction sealing works by generating an electromagnetic field that heats the foil liner inside the cap, melting the polymer coating and bonding it to the container's lip to create a hermetic seal[1][2][4][10].
The benefits of using induction seals include providing a hermetic seal, extending shelf life, offering tamper evidence, preventing leaks, and ensuring regulatory compliance[4][9].
Induction sealing is widely used in the food and beverage, pharmaceutical, cosmetic, automotive, and various other industries[3][4][6][13].
Factors to consider include container material, cap size and shape, production volume, and specific product requirements such as tamper evidence and child resistance[7][9][12].
