Foil heat induction liners are critical for ensuring product integrity in industries like pharmaceuticals, food and beverage, and cosmetics. These liners create hermetic seals that prevent contamination, leakage, and tampering. However, not all liners are created equal—durability depends on material quality, manufacturing processes, and compliance with industry standards. This guide explores how to verify the durability of foil liners from induction seal manufacturers, providing actionable steps, testing methodologies, and key considerations.

Understanding Foil Heat Induction Liners

What Are Foil Heat Induction Liners?

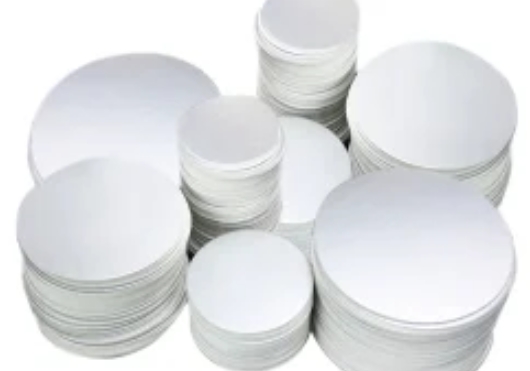

Foil heat induction liners are multi-layered components inserted into container caps. They typically consist of:

1. Aluminum Foil Layer: Conducts heat during induction sealing.

2. Polymer Heat Seal Layer: Bonds to the container's rim.

3. Backing Layer: Foam or paper for insulation and structural support.

The induction process uses electromagnetic energy to heat the foil, melting the polymer layer to create an airtight seal. Durability ensures this seal withstands transportation, temperature fluctuations, and tampering.

Key Factors Influencing Durability

1. Material Quality

- Aluminum Foil Thickness: Thicker foil (e.g., 35–50 microns) resists tearing and punctures.

- Polymer Composition: FDA-approved polymers like EVA or LDPE ensure strong adhesion and chemical resistance.

- Backing Integrity: High-density foam prevents compression under pressure.

2. Sealing Performance

- Heat Resistance: Liners must withstand temperatures up to 250°C for hot-fill applications.

- Adhesion Strength: Measured in N/cm²; durable liners maintain ≥3 N/cm² after stress tests.

3. Tamper Evidence

Durable liners leave visible residue or fractures when removed, ensuring tamper detection.

Testing Methods for Durability

1. Burst Pressure Testing

- Procedure: Pressurize sealed containers until failure.

- Standard: ASTM F1140 (≥30 psi for pharmaceutical packaging).

- Example: A 50mm liner from foil heat induction liner manufacturers like Pres-On withstands 35 psi.

2. Heat Resistance Evaluation

- Hot-Fill Simulation: Seal containers filled with 85°C liquid, then cool to room temperature.

- Pass Criteria: No delamination or leakage after 24 hours.

3. Peel Strength Testing

- Method: Measure force required to peel the liner from the container.

- Equipment: Tensile tester (e.g., Instron 5565).

- Benchmark: ≥2.5 N/cm for food-grade liners.

4. Accelerated Aging Tests

- Conditions: 40°C and 75% RH for 90 days (simulates 1–2 years of shelf life).

- Outcome Check: Seal integrity, material degradation.

Industry Standards and Certifications

1. FDA Compliance

- 21 CFR 177.1520: Certifies food-safe polymers.

- USP : For pharmaceutical container integrity.

2. ISO Certifications

- ISO 9001: Quality management systems.

- ISO 15378: Specific to primary packaging materials.

3. EU Regulations

- REACH: Restricts hazardous chemicals.

- EC 1935/2004: Food contact material safety.

Selecting Reliable Foil Heat Induction Liner Manufacturers

1. Evaluate Technical Expertise

- R&D Capabilities: Manufacturers like Ziling Packaging invest in material innovation.

- Customization: Ability to tailor liners for unique container shapes or product types.

2. Review Testing Protocols

- In-House Labs: Top manufacturers (e.g., Selig Group) conduct burst, peel, and thermal tests.

- Third-Party Audits: Request CoA (Certificate of Analysis) and ISTA-certified test reports.

3. Assess Production Consistency

- Automation: High-precision machines reduce human error.

- Quality Control: Six Sigma or similar frameworks ensure batch-to-batch uniformity.

4. Sustainability Practices

- Recyclable Materials: Some foil heat induction liner manufacturers offer eco-friendly PLA-based liners.

- Waste Reduction: Closed-loop manufacturing processes.

Case Study: Durability in Action

Pharmaceutical Application:

- Challenge: A vaccine manufacturer needed liners to withstand -70°C storage.

- Solution: Selig Group developed a cryogenic-grade liner with reinforced foil and low-temperature polymers.

- Result: Zero seal failures during transport and storage.

Future Trends in Foil Liner Durability

1. Smart Liners: RFID-enabled tags for real-time integrity monitoring.

2. Nanocoating Technology: Enhances barrier properties against moisture and oxygen.

3. AI-Driven QC: Machine learning algorithms detect micro-leaks during production.

Conclusion

Verifying the durability of foil liners requires rigorous testing, adherence to standards, and collaboration with certified foil heat induction liner manufacturers. By prioritizing material quality, advanced testing, and manufacturer expertise, businesses can ensure their products remain secure and compliant. As technology evolves, innovations like smart liners and AI-driven QC will further enhance durability assessments.

FAQ

1. How do I test foil liners for chemical resistance?

Immerse liners in the product for 72 hours and check for delamination or swelling (per ASTM D543).

2. What certifications should I demand from manufacturers?

FDA 21 CFR 177.1520, ISO 15378, and EC 1935/2004 for global compliance.

3. Can foil liners handle carbonated beverages?

Yes, but specify high-burst-strength liners (≥40 psi) to withstand internal pressure.

4. How long does a durability test take?

Accelerated aging tests typically require 60–90 days, while peel/burst tests take 1–2 days.

5. Are thicker foil layers always better?

Not necessarily—thicker foil may reduce flexibility. Balance thickness with application needs.
