Induction sealing is a widely used method for creating tamper-evident seals on containers, ensuring product integrity and security. The process involves using an induction seal liner, which is heated by an electromagnetic field to form a strong bond with the container's lip. Determining the correct size of the induction seal liner is crucial for achieving a reliable seal. In this article, we will explore the factors influencing the choice of induction seal liner size and provide guidance on how to select the appropriate liner for your application.
Induction sealing is a non-contact process that uses electromagnetic induction to heat and melt the sealant layer of the liner, creating a hermetic seal. This method is commonly used for packaging liquids, pharmaceuticals, and other products requiring tamper-evident security.

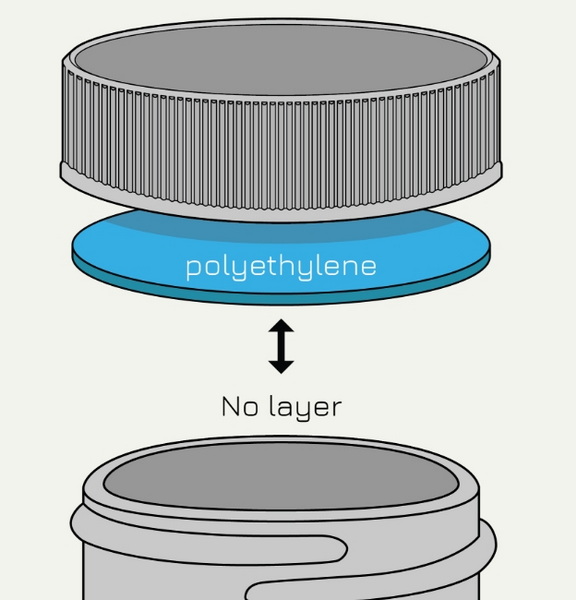

1. Induction Seal Liner: Typically consists of a heat seal layer, a foil layer, and a backing layer. The heat seal layer adheres to the container, while the foil layer helps in heating the seal during the induction process.
2. Induction Sealer: This equipment generates the electromagnetic field necessary for heating the foil layer of the liner.
3. Container: The size and shape of the container influence the choice of the induction seal liner.
The size of the container is a primary factor in determining the induction seal liner size. Containers vary from small vials to large drums, and the liner must match the container's dimensions for proper sealing. An improperly sized liner can lead to inadequate coverage or compromised seal integrity, resulting in leakage or contamination[1].
The closure method, including the cap size and type, also affects the choice of liner. Induction sealing can accommodate cap diameters up to 140 mm, with smaller diameters generally producing higher sealing quality[2].
Induction liners are compatible with various container materials, including HDPE, LDPE, PET, PVC, and glass. The liner must be chosen based on the container material to ensure compatibility and a strong seal[10].

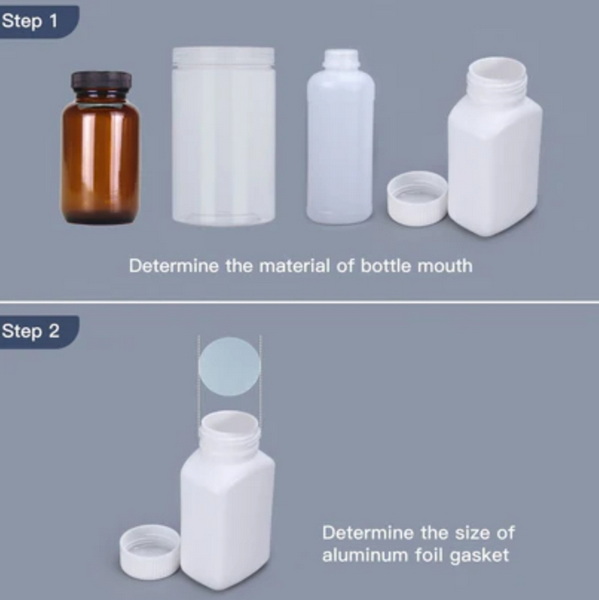

1. Measure the Container Neck: Determine the inner diameter of the container neck to select a liner that fits snugly.
2. Choose the Correct Liner Type: Decide between one-piece or two-piece liners based on the product type and application. One-piece liners are common for most consumer products, while two-piece liners are often used in pharmaceuticals and chemicals[9].
3. Consider the Cap Size: Ensure the liner is compatible with the cap size and type.
4. Test the Liner: Conduct trials with different liners to ensure the best fit and seal quality.
- Proper Torque: Apply the correct torque to ensure the liner is in direct contact with the container lip[10].
- Optimal Distance: Maintain a standard distance of about 1/8 inch between the cap and the sealing head for optimal sealing strength[4][7].
- Power Settings: Adjust the power settings and sealing time to achieve the desired seal quality. Too little heat results in a weak seal, while too much heat can burn the liner[4][10].
These liners combine all layers into one piece and are commonly used for products like condiments and shampoos. They adhere to the container lip upon application and are suitable for dispensing closures[9].
These liners include a wax layer that melts during the induction process, releasing the backing layer from the foil and heat seal layers. They are often used in pharmaceuticals and chemicals[9].
Determining the correct induction seal liner size is essential for achieving a secure and reliable seal. Factors such as container size, closure method, and material compatibility must be considered when selecting a liner. By following the steps outlined in this article and understanding the different types of liners available, manufacturers can ensure effective induction sealing for their products.
Induction sealing can accommodate cap diameters up to 140 mm, with smaller diameters generally producing higher sealing quality[2].
Even pressure is achieved by matching the closure to the container's neck profile and ensuring proper torque application[7][10].
Common types include one-piece and two-piece liners. One-piece liners are used for most consumer products, while two-piece liners are often used in pharmaceuticals and chemicals[9].
A standard distance of about 1/8 inch is recommended for optimal sealing strength[4][7].
Start with minimum power and increase by 1-2% until the desired seal quality is achieved. Too little heat results in a weak seal, while too much heat can burn the liner[4][10].
