Tab foil heat induction liners are a critical innovation in modern packaging, offering tamper-evident security, leak prevention, and enhanced consumer convenience. These liners use electromagnetic induction to create a hermetic seal on containers, ensuring product integrity across industries like food, pharmaceuticals, and cosmetics. Choosing the right liner requires understanding material compatibility, container specifications, and application requirements. This comprehensive guide will help you select the optimal tab foil heat induction liner for your bottles.

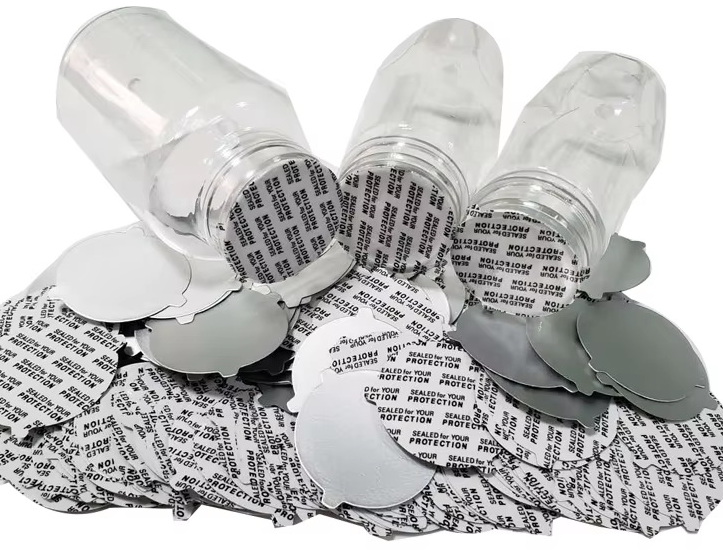

A tab foil heat induction liner is a multi-layered seal inserted into a bottle cap. When exposed to an electromagnetic field, its aluminum foil layer generates heat, bonding a polymer coating to the container's lip. This creates an airtight barrier that prevents leaks and contamination. Key components include:
- Aluminum Foil Layer: Conducts heat during induction sealing.
- Heat-Seal Polymer: Bonds to the container (e.g., LDPE for plastics, GlassFuze™ for glass).
- Pull Tab: Ergonomically designed for easy opening.
- Backing Material: Foam or pulpboard for structural support.
The liner's heat-seal layer must match the container material:
- Plastic Bottles (PET, HDPE, PP): Use LDPE or PET-based polymers.
- Glass Bottles: Require specialized coatings like GlassFuze™ for adhesion.
- Oil-Based Products: Opt for oil-resistant polymers (e.g., EVOH).
- Diameter: Measure the bottle's outer opening and threading width. For example, a 38mm cap typically requires a 38mm liner with ±0.15mm tolerance.
- Neck Design: Ensure the liner accommodates unique neck shapes (e.g., wide-mouth jars).
- Liquid vs. Dry Products: Liquids need leak-proof seals; dry goods require moisture barriers.
- Temperature Sensitivity: Hot-filled products (e.g., sauces) demand high-temperature-resistant liners (up to 85°C).
Tab foil liners must leave visible residue if opened, complying with FDA and EU regulations. The pull tab design enhances tamper evidence while simplifying access.
- Structure: Combines foil, polymer, and backing into a single unit.
- Advantages: Clean removal, ideal for dispensing closures.
- Applications: Sauces, shampoos, beverages.

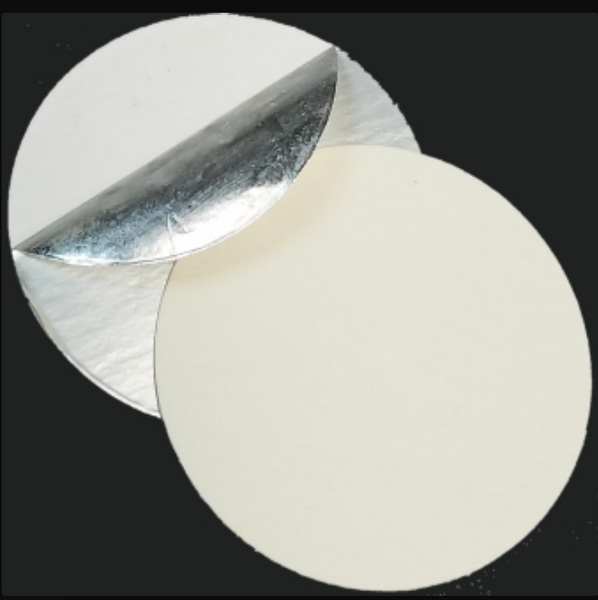

- Structure: Separates into foil (adheres to the container) and backing (remains in the cap).
- Advantages: Resealable for multi-use products.
- Applications: Pharmaceuticals, automotive fluids.
- Structure: Includes a breathable membrane for pressure-sensitive products.
- Advantages: Prevents container bloating during transport.
- Applications: Disinfectants, chemicals.

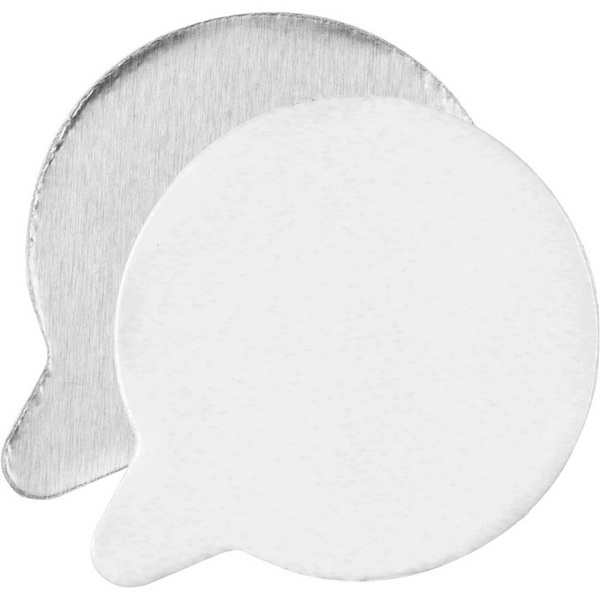

- Structure: Features an integrated pull tab for easy opening.
- Advantages: Consumer-friendly, tamper-evident.
- Applications: Juices, lotions, cosmetics.
- Example: Salad dressings, dairy products.
- Benefit: Extends shelf life by blocking oxygen and moisture.
- Example: Liquid medications, supplements.
- Benefit: Ensures compliance with FDA tamper-evident standards.
- Example: Serums, creams.
- Benefit: Protects against contamination and evaporation.
1. Assess Container Material: Match the liner's heat-seal layer to the bottle (e.g., GlassFuze™ for glass).
2. Determine Product Needs: Choose oil-resistant or high-temperature liners as needed.
3. Verify Dimensions: Measure the bottle's opening and select a liner with ±0.15mm tolerance.
4. Test Seal Integrity: Conduct dye penetration or vacuum decay tests.
5. Partner with Reliable Suppliers: Opt for ISO 9001-certified manufacturers like WANQI or Selig Group.
- Reduced Waste: Hermetic seals minimize product spoilage.
- Recyclability: PET bottles with induction liners are fully recyclable.
- Cost Savings: Bulk orders reduce per-unit costs by up to 30% (Source: Enercon Industries).
- Smart Liners: RFID tags for supply chain tracking.
- Biodegradable Materials: Eco-friendly polymers to reduce plastic waste.
- Enhanced Printing: Custom logos and QR codes for branding.
Choosing the best tab foil heat induction liner involves balancing material compatibility, container specifications, and production needs. By prioritizing tamper evidence, leak prevention, and user convenience, manufacturers can enhance product safety and consumer trust. Partnering with certified suppliers ensures quality and compliance, while innovations in smart and sustainable materials promise to revolutionize packaging further.
A multi-layered seal that uses electromagnetic induction to bond to a container's lip, featuring a pull tab for easy opening and tamper evidence.
Measure the container's outer diameter and threading width. Most suppliers provide templates for accurate sizing.
Yes, but select high-temperature-resistant polymers (e.g., HDPE) and ensure proper sealer calibration.
Yes. Separate the cap and liner before recycling the PET bottle.
Common causes include incorrect torque, contaminated container lips, or insufficient dwell time.
