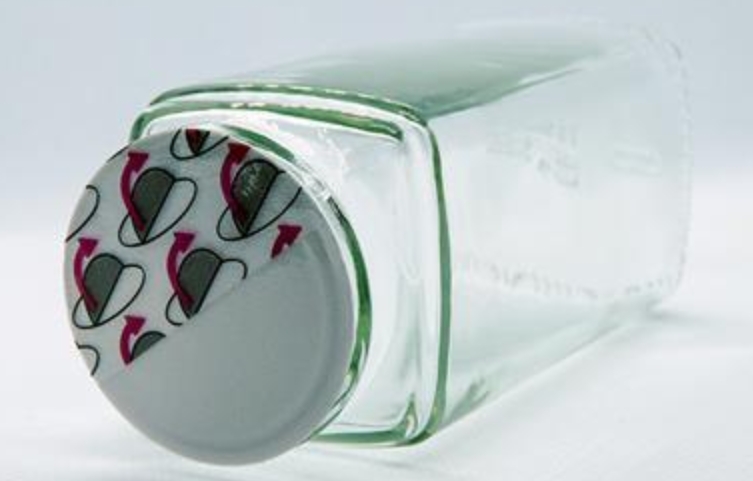

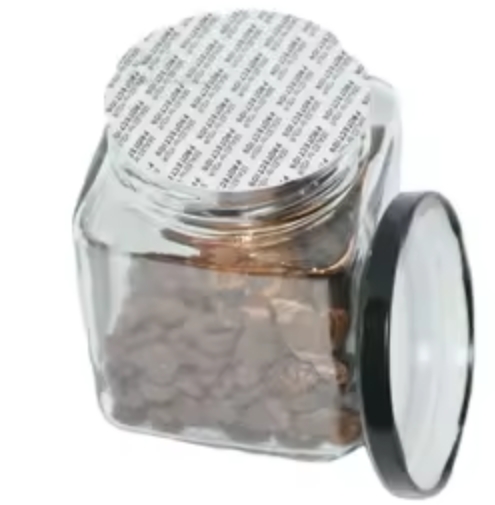

Induction liners are essential for creating airtight, tamper-evident seals on glass containers, ensuring product integrity across industries such as pharmaceuticals, food and beverage, and cosmetics. These liners use electromagnetic energy to bond a multi-layered foil structure to the container's rim, providing unmatched security and freshness preservation. This article explores the science behind induction liners for glass containers, their benefits, and best practices for implementation.
Induction liners are specialized seals designed to create hermetic barriers between glass containers and their caps. They consist of three primary layers:
1. Heat Seal Layer: A polymer (e.g., EVA or LDPE) that melts under heat to bond with the glass.
2. Aluminum Foil Layer: Conducts electromagnetic energy during sealing.
3. Backing Layer: Foam or paperboard for insulation and structural support.
The sealing process involves four key steps:
A cap containing the induction liner is screwed onto the filled glass container.
The container passes under an induction sealer, which generates a high-frequency electromagnetic field.
The aluminum foil absorbs electromagnetic energy, heating rapidly (up to 250°C) and melting the polymer layer.
The molten polymer adheres to the glass rim, creating an airtight seal as it cools.
Polymers like silicone-modified EVA are optimized for glass adhesion. These materials:
- Withstand thermal expansion differences between glass and metal caps.
- Resist chemical interactions with acidic or alkaline products.
- Standard Glass Liners: 35–50µm aluminum foil balances conductivity and flexibility.
- High-Temperature Applications: 60µm foil for hot-fill products like jams or sauces.
- Holographic Prints: Visible distortion if tampered (e.g., Selig Group's anti-counterfeit liners).
- Fracture Patterns: Broken seals leave irreparable marks on the foil.
The hermetic seal prevents leaks, even under pressure changes during shipping or storage.
Case Study: A premium olive oil brand reduced leakage complaints by 90% after switching to induction liners.
By blocking oxygen and moisture, induction liners:
- Preserve flavor in beverages (e.g., wine, juices).
- Prevent oxidation in pharmaceuticals (e.g., vitamin tablets).
Tampering disrupts the foil-polymer bond, leaving visible signs. This is critical for over-the-counter medications and luxury cosmetics.
FDA 21 CFR 177.1520 and EU EC 1935/2004 certifications ensure food and pharmaceutical safety.
- Size: Match the liner diameter to the glass container's inner neck (e.g., 38mm liner for a 40mm neck).
- Material: Silicone-coated liners for better glass adhesion.
- Induction Sealer Settings: 500–1,000W power for glass, depending on liner thickness.
- Cap Torque: 10–15 in-lbs to ensure even pressure.
- Burst Pressure Test: Seal must withstand ≥30 psi (ASTM F1140).
- Dye Penetration Test: Submerge sealed containers in dyed water to check leaks.
- Use Case: Child-resistant liners for prescription pill bottles.
- Standard: USP for container integrity.
- Use Case: Tamper-evident seals for premium spirits in glass bottles.
- Regulation: FDA 21 CFR 177.1520 compliance.
- Use Case: Luxury perfumes with custom-printed liners.
1. Smart Liners: RFID tags track temperature exposure during transit.
2. Biodegradable Backings: PLA foam reduces environmental impact.
3. AI-Driven Defect Detection: Cameras and machine learning identify micro-leaks.
Induction liners ensure secure seals on glass containers through precision-engineered materials, electromagnetic bonding, and tamper-evident designs. By selecting glass-specific liners and adhering to calibration best practices, manufacturers can enhance product safety, extend shelf life, and meet regulatory demands. Emerging technologies like biodegradable materials and smart liners will further revolutionize glass packaging.
Conduct a burst pressure test (≥30 psi) or submerge the container in dyed water to check for leaks.
Yes, but use high-temperature liners with 60µm foil and silicone-modified polymers.
Yes. Peel off the liner completely, and recycle the glass and cap separately.
Silicone improves adhesion to glass's non-porous surface, reducing seal failure risks.
Yes, but dark glass may require higher induction power due to reduced electromagnetic absorption.
